1 / 20Rosemount 3144P temperature transmitter with universal input (RTD/thermocouple), FOUNDATION Fieldbus output and ±0.10 °C accuracy — new, made 2012, in Barmaan stock. Dual-sensor, up to SIL 3, ATEX/FM. The photos show the actual unit in our warehouse.

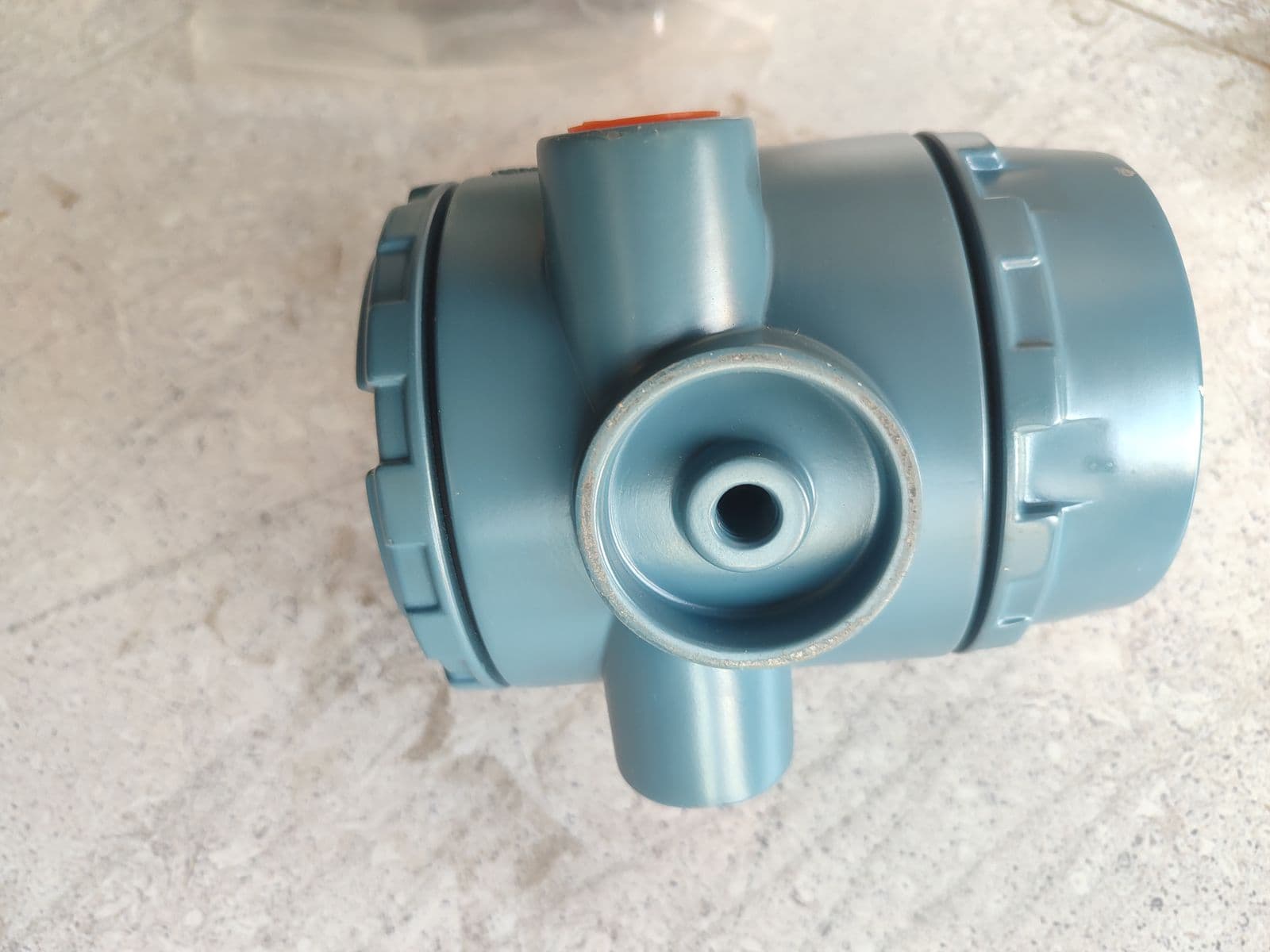

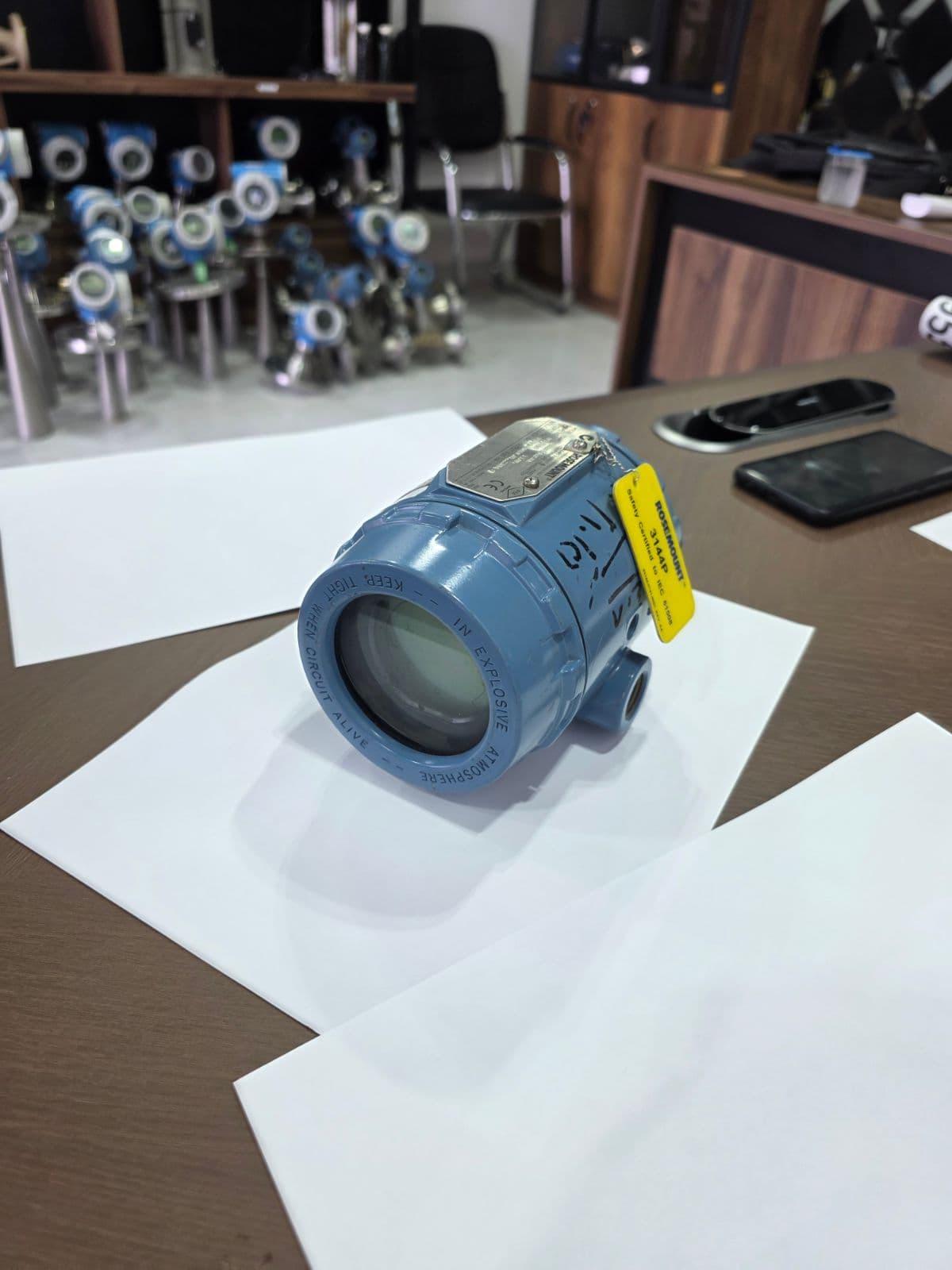

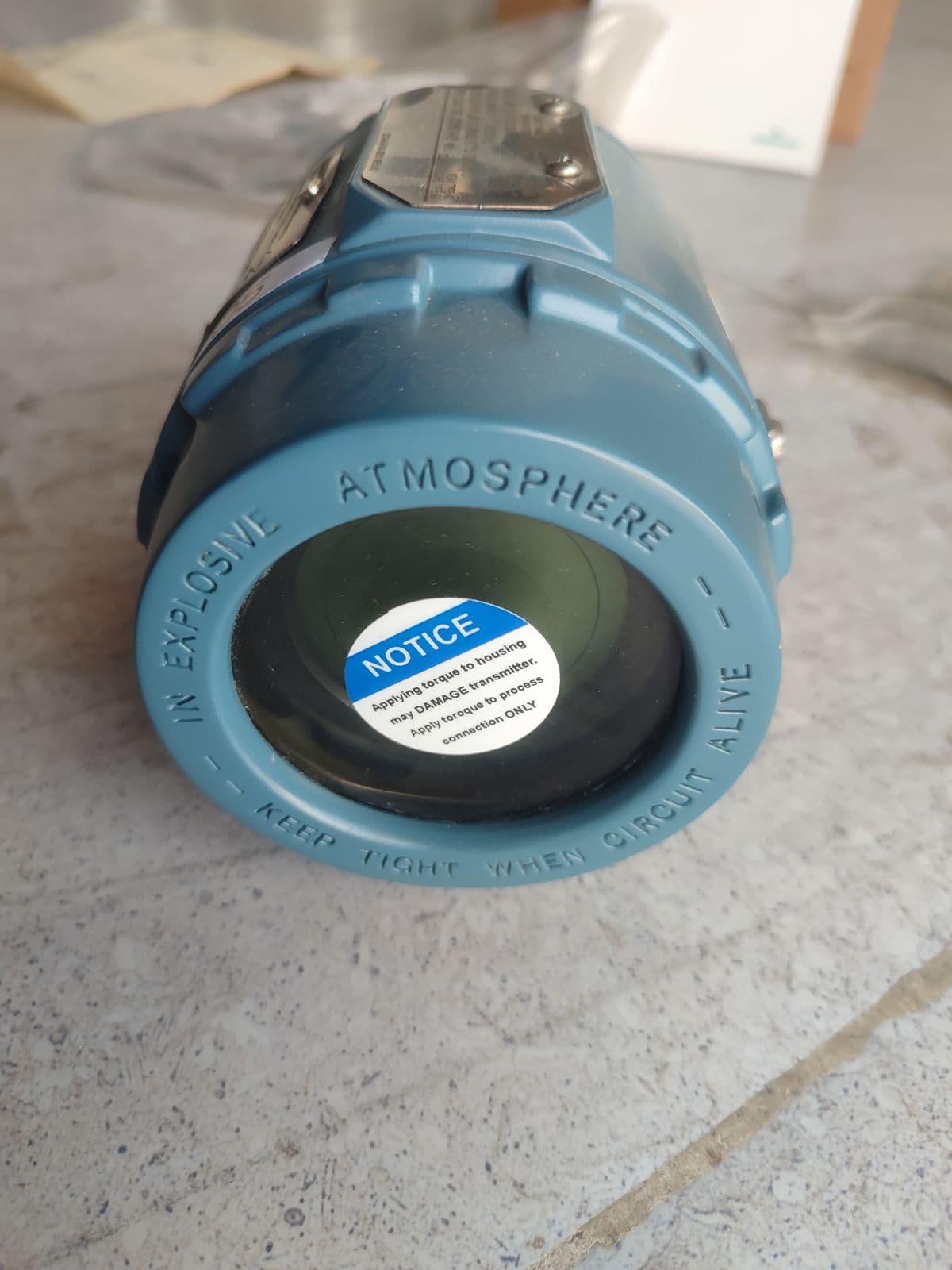

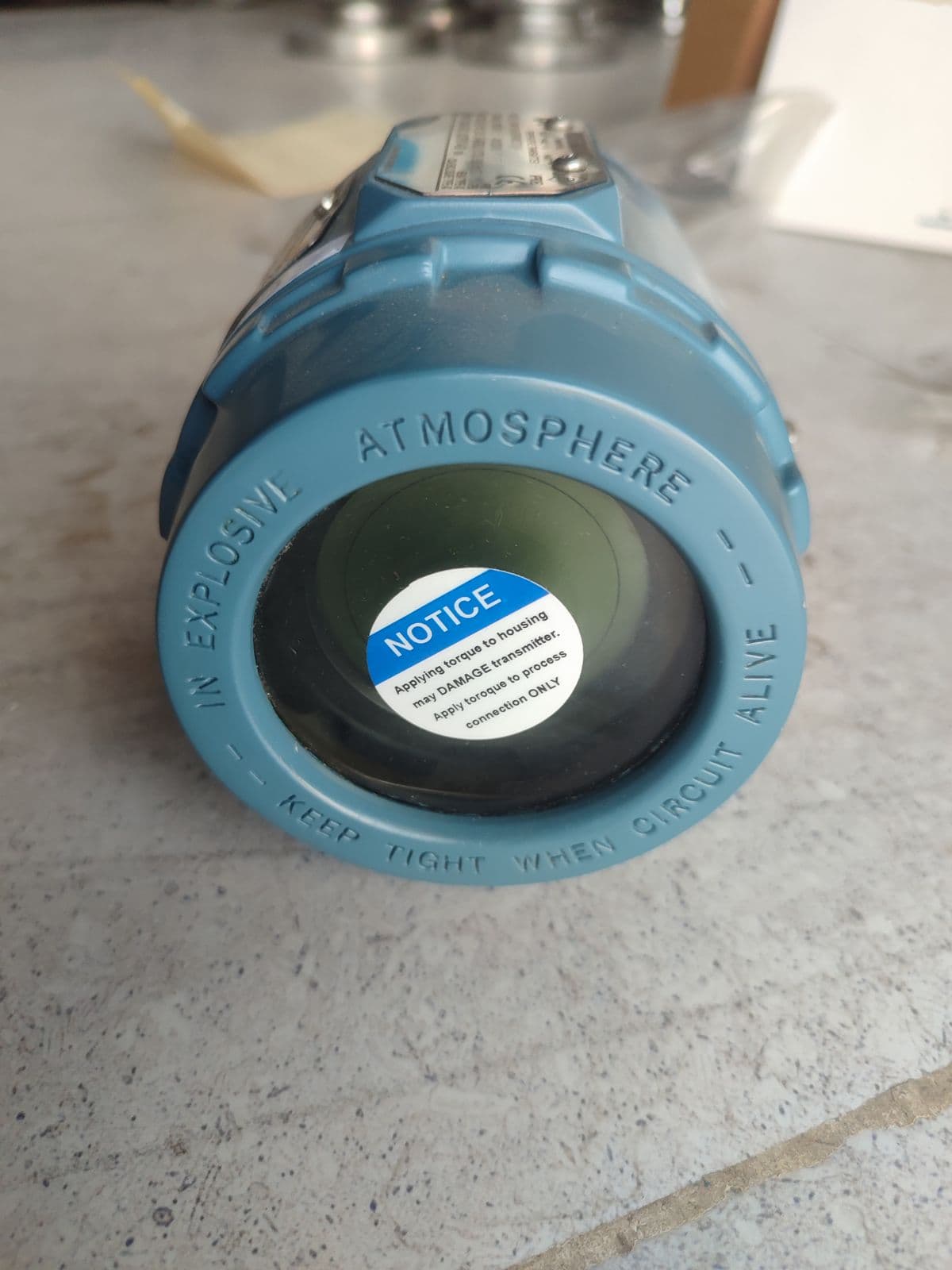

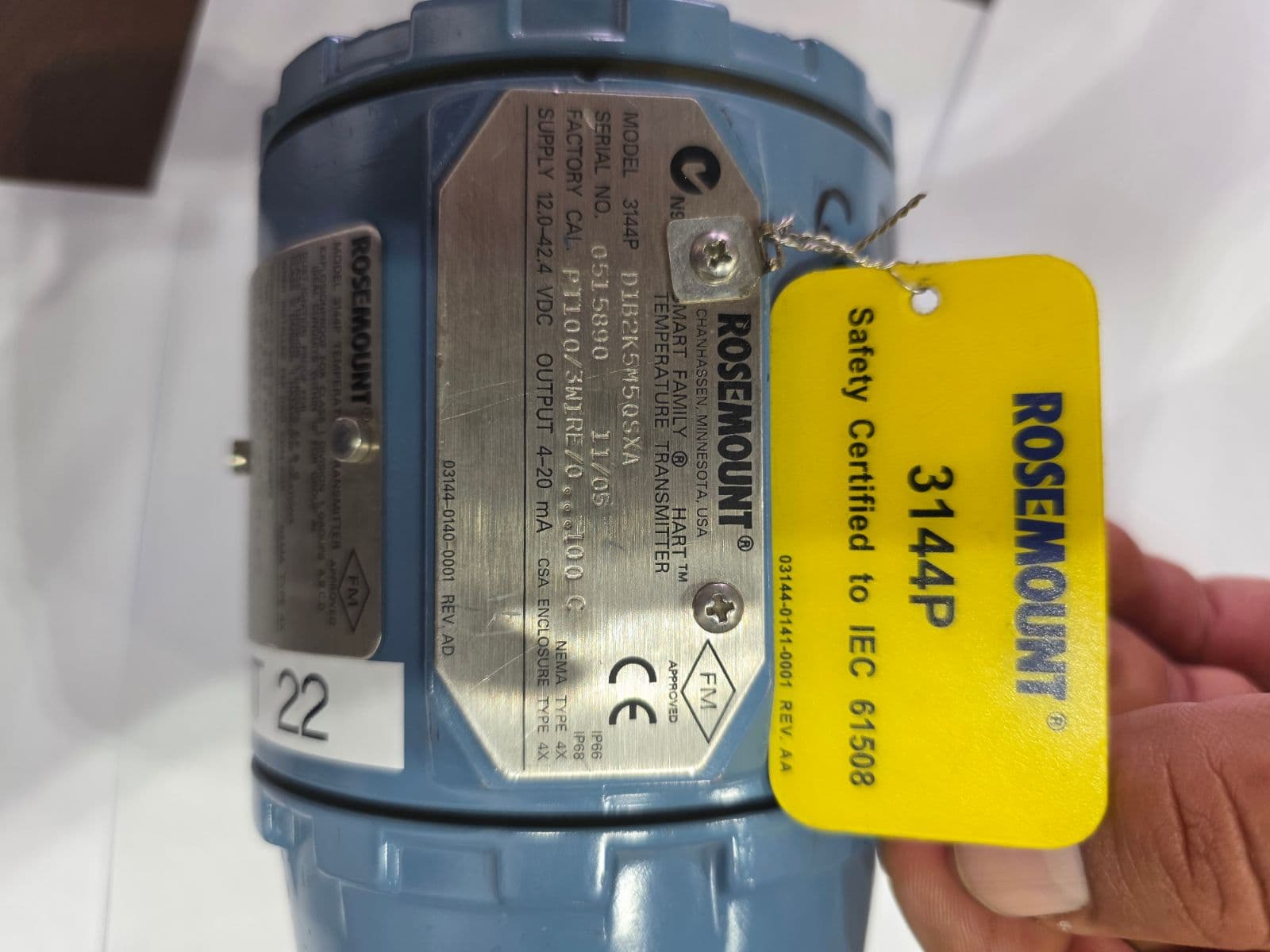

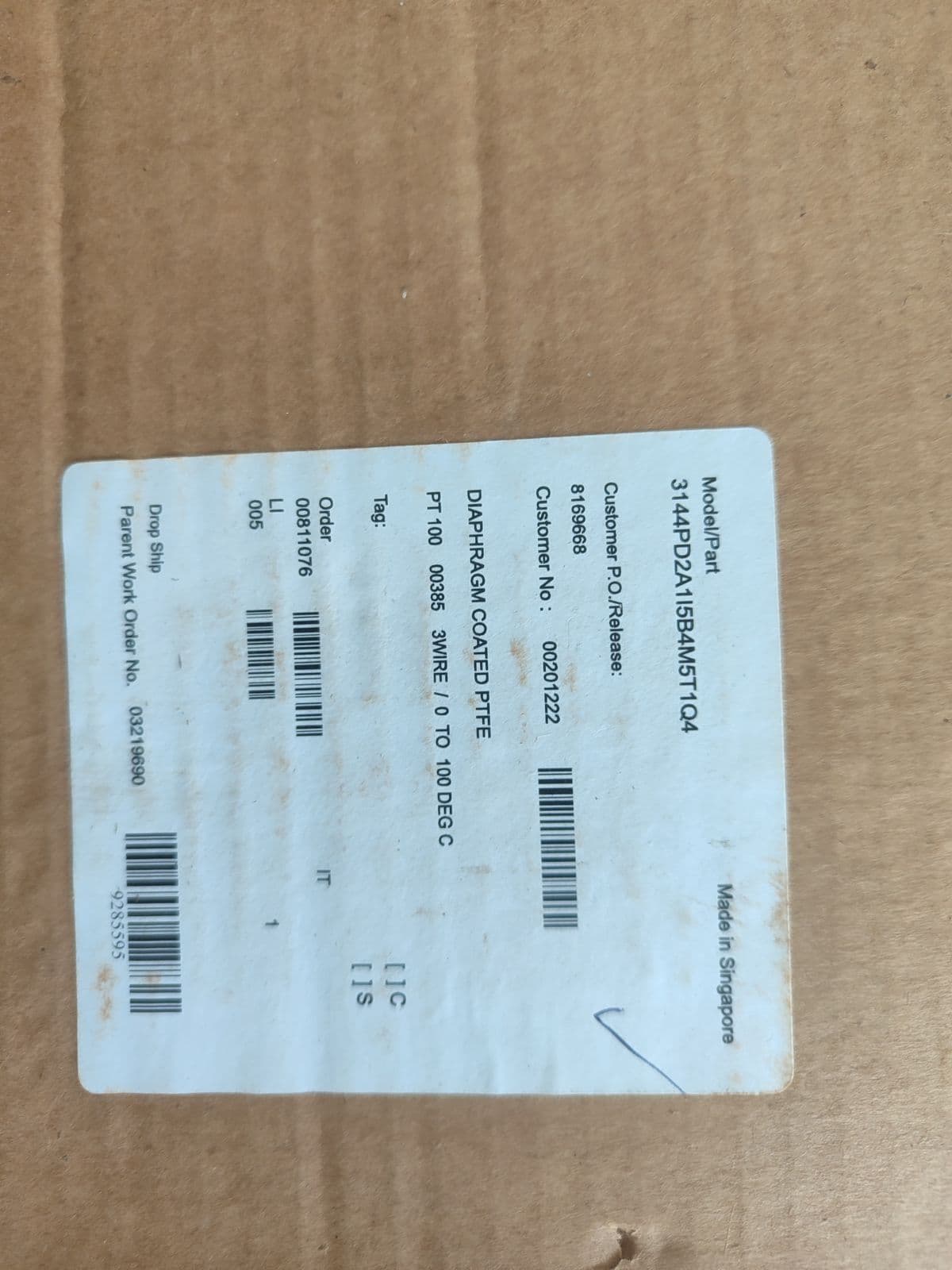

The Rosemount 3144P temperature transmitter (Emerson) is one of the most accurate and most dependable temperature transmitters in the process industries. The unit offered here was built in October 2012 by Emerson FZE Dubai, is entirely new, and is held physically in Barmaan's warehouse; every "Barmaan stock" photograph on this page — including the device nameplate showing model 3144P — is of this very item. Two units of this transmitter are currently in stock: the first with a FOUNDATION Fieldbus output and the second with a 4–20 mA HART output and a three-wire PT100 input over the 0 to 100 °C range.

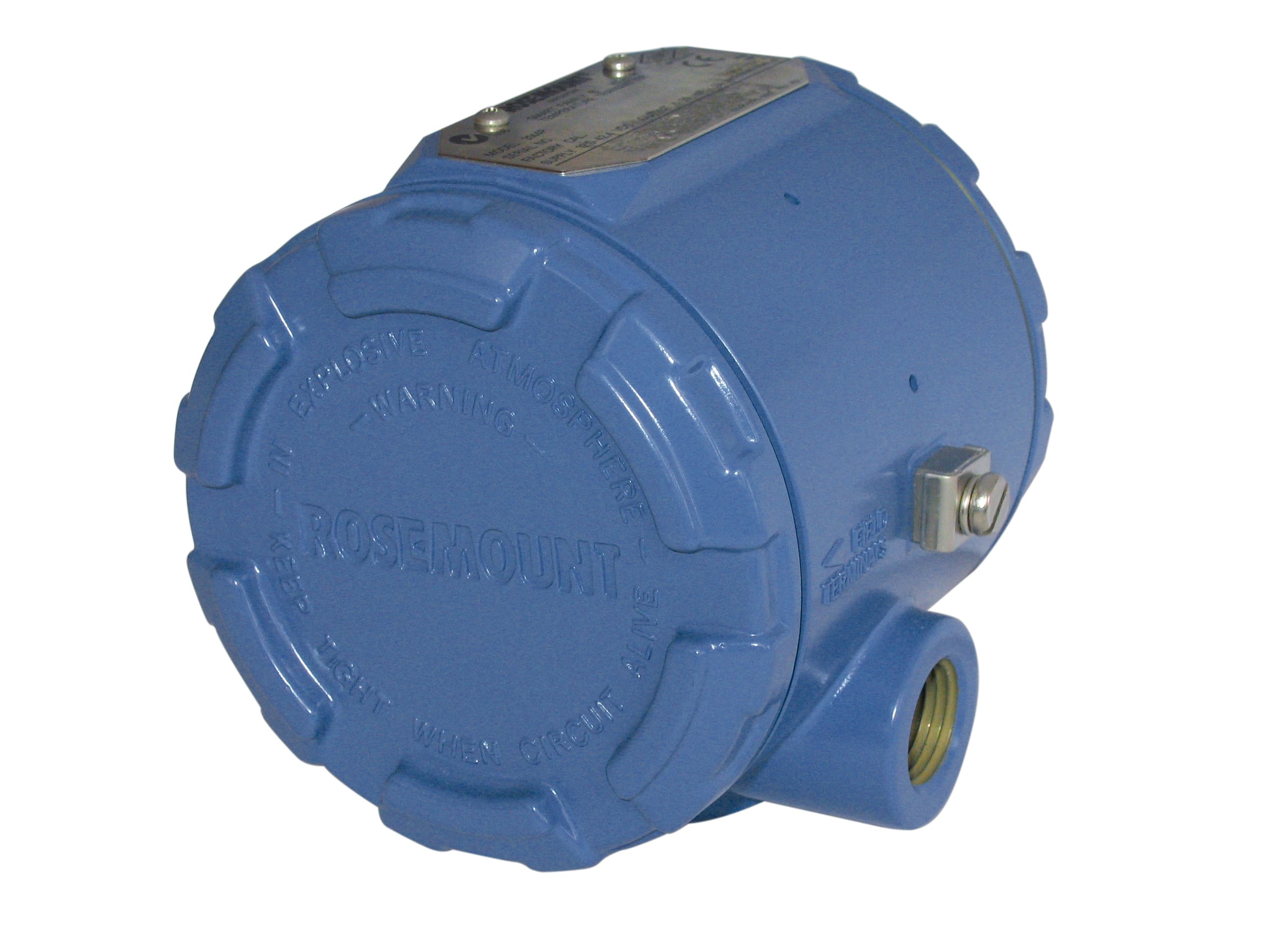

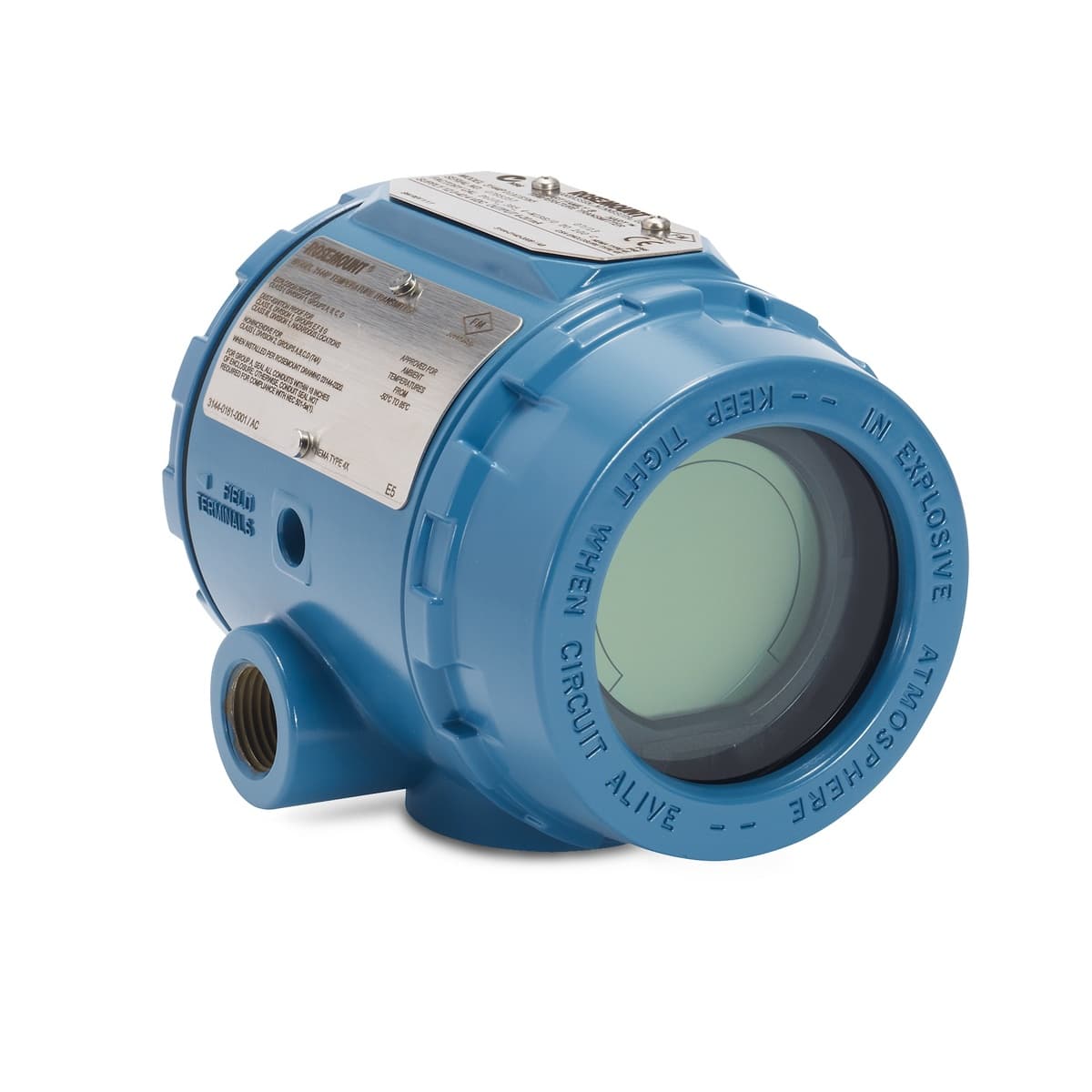

The 3144P input is universal and accepts RTDs (such as Pt100), thermocouples, resistance and millivolt signals, in single- or dual-sensor form. Transmitter-sensor matching (Callendar–Van Dusen) improves measurement accuracy by up to 75%, and the digital accuracy for a Pt100 is about ±0.10 °C per official datasheet 00813-0100-4021. A dual-compartment housing, a large LCD display and a sensor drift alert are among its other features.
The output of this particular unit is FOUNDATION Fieldbus (bus-powered, 9 to 32 V DC, 12 mA maximum), making it a direct fit for digital fieldbus networks. Input/output isolation is 500 V DC, and it can be used in safety loops up to SIL 2 (single) and SIL 3 (1oo2 redundant). Per the technical department's recorded specification, this unit is configured over the range −118 to +100 °C, which can be changed as required.

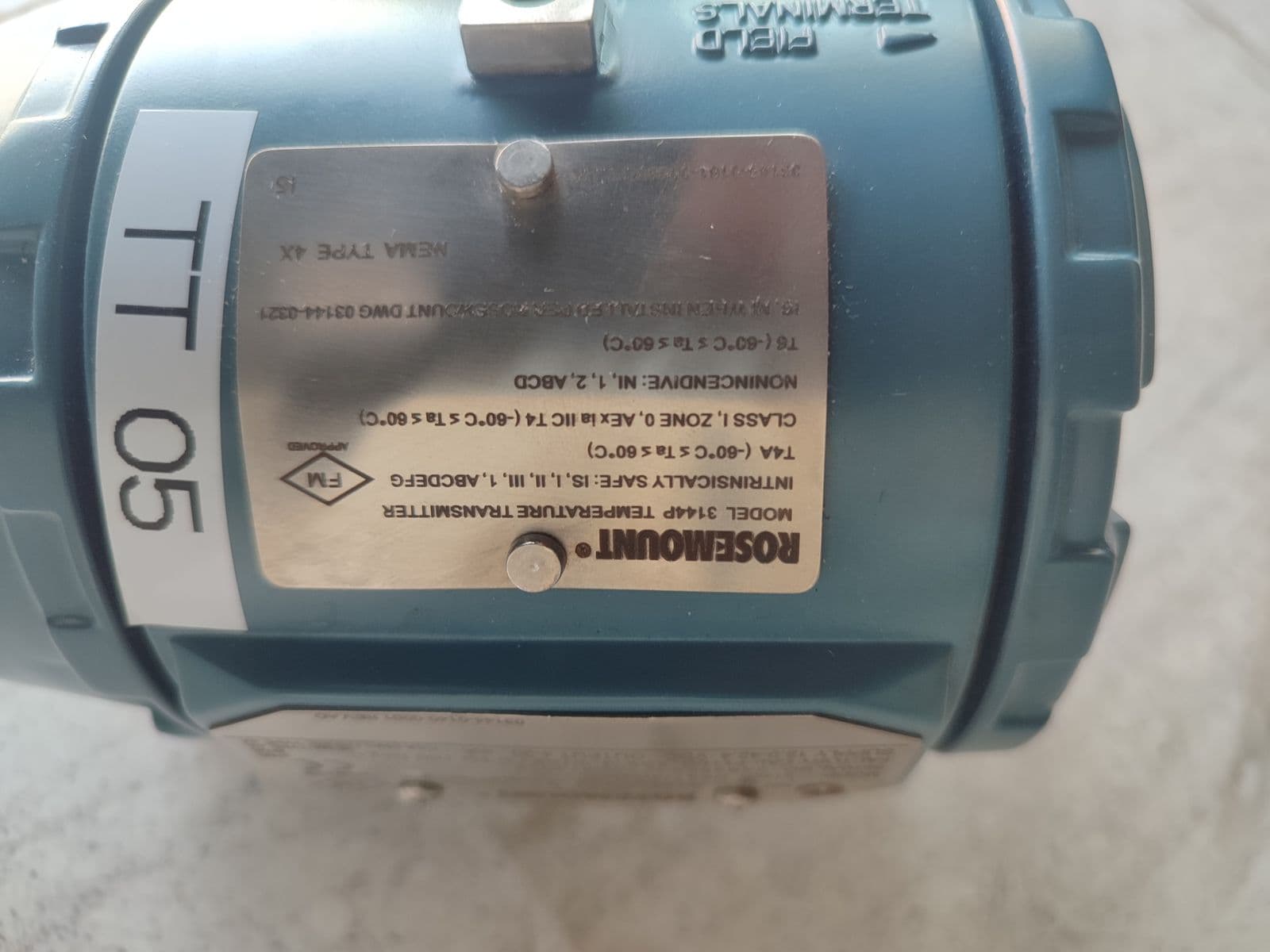

The device holds FM, CE and ATEX approvals (class II 1 G, certificate Baseefa03ATEX0295) for installation in hazardous areas, with IP66/IP68 ingress protection (CSA Type 4X / NEMA 4X) — a combination that makes it a dependable choice for the oil, gas, petrochemical and chemical industries.
The Rosemount 3144P has been an industry standard for accurate temperature measurement for years and, thanks to sensor redundancy, drift detection and high accuracy, is widely used at critical process points.
Barmaan supplies industrial instrumentation; this item is offered with a guarantee of authenticity, the option to inspect it in person at the warehouse, selection consultancy, and installation and commissioning support. To obtain pricing, submit a proforma invoice request from this page.
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Rosemount / Emerson (Emerson FZE, Dubai, UAE) |
| Model / Order code | 3144P — 3144P D1F2I1A01D01B5M5U1 |
| Device type | Temperature Transmitter — dual-compartment, LCD |
| Configured range (this unit) | −118…+100 °C (per order — input is freely configurable) |
| Transmitter-sensor matching | Callendar–Van Dusen — up to 75% accuracy improvement |
| Year of manufacture | 2012-10 (10/12) |
| Performance & accuracy | |
| Digital accuracy (Pt100) | ±0.10 °C (per PDS 00813-0100-4021) |
| Process conditions & connection | |
| Ambient temperature | −40…+85 °C (LCD −20…+80 °C) |
| Construction & materials | |
| Ingress protection | IP66 / IP68 — CSA Type 4X / NEMA 4X |
| Power & output | |
| Sensor input | Universal — RTD, Thermocouple, Ohms, mV (single & dual) |
| Output / Communication | واحد ۱: FOUNDATION Fieldbus (bus-powered) · واحد ۲: 4–20 mA HART (PT100/3-wire, 0…100 °C) |
| Supply voltage | 9.0…32.0 V DC (bus-powered), 12.0 mA max |
| Input/output isolation | 500 Vdc |
| Approvals & safety | |
| Functional safety | SIL 2 (1oo1) / SIL 3 (1oo2 redundant) |
| Certifications | FM Approved, CE, ATEX II 1 G (Baseefa03ATEX0295, CE 1180) |
| Condition & availability | |
| Condition | New / نو — Barmaan stock |
| Model code | Description | Measuring range |
|---|---|---|
| 3144P | Rosemount 3144P — premium dual-sensor ★ this unitHigh accuracy & stability, universal input, up to SIL 3 | universal input |
| 644 | Rosemount 644 — mid-rangeVersatile temperature transmitter for most applications | universal input |
| 248 | Rosemount 248 — basic/economicalBasic, cost-effective temperature transmitter | universal input |
| 848T | Rosemount 848T — multi-input (8 points)Up to 8 temperature points on one fieldbus device | 8 × universal input |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.

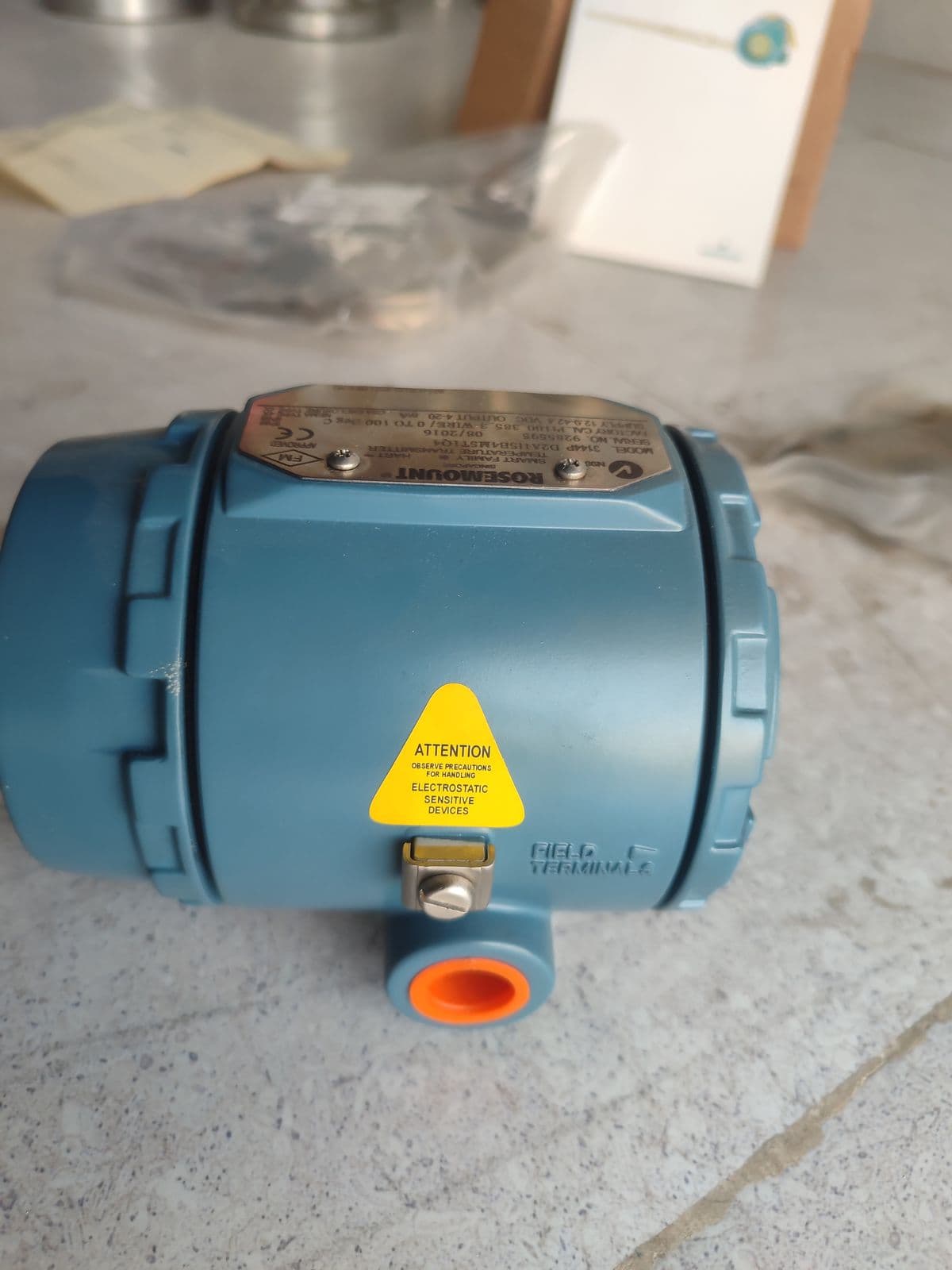

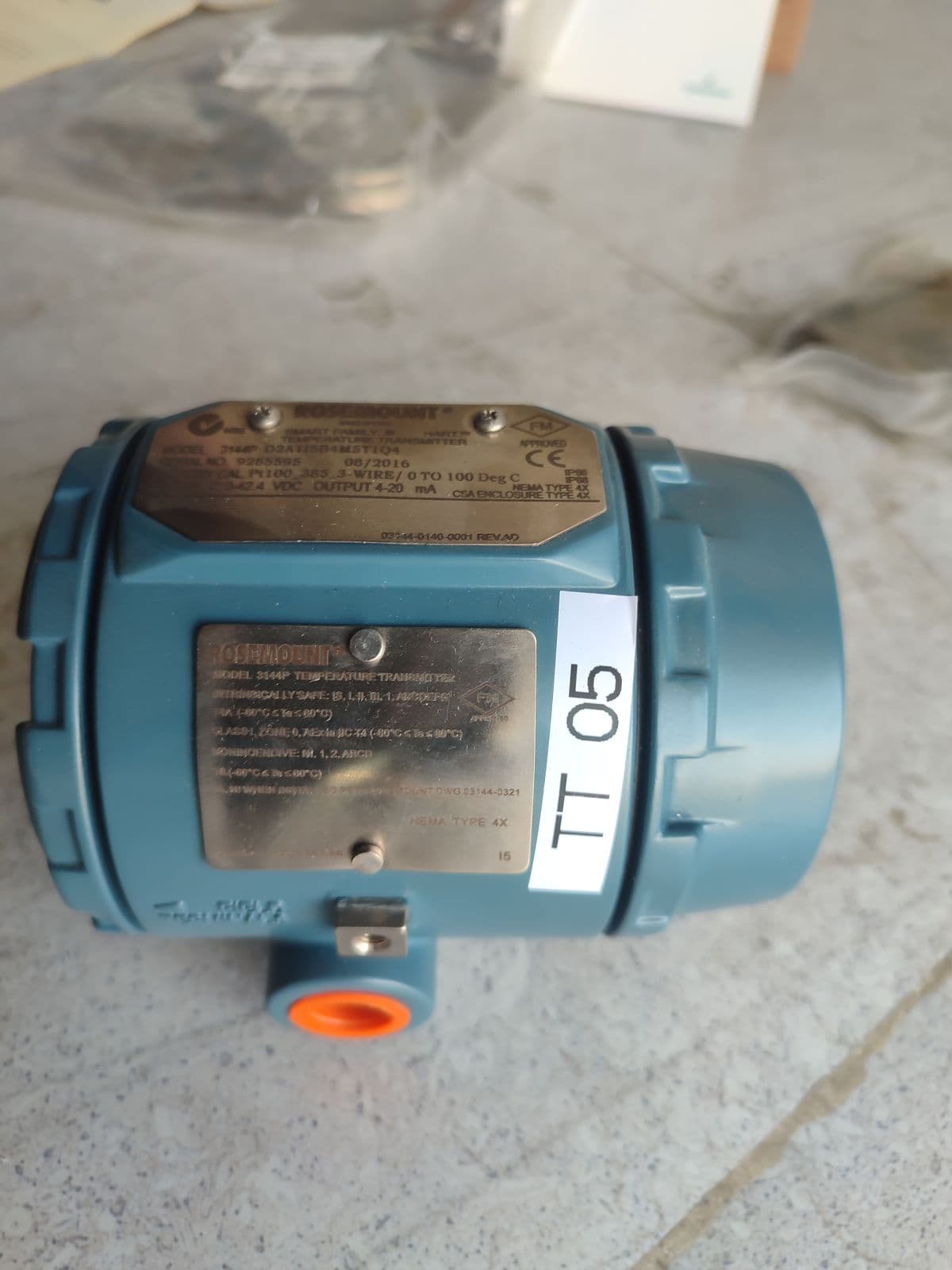

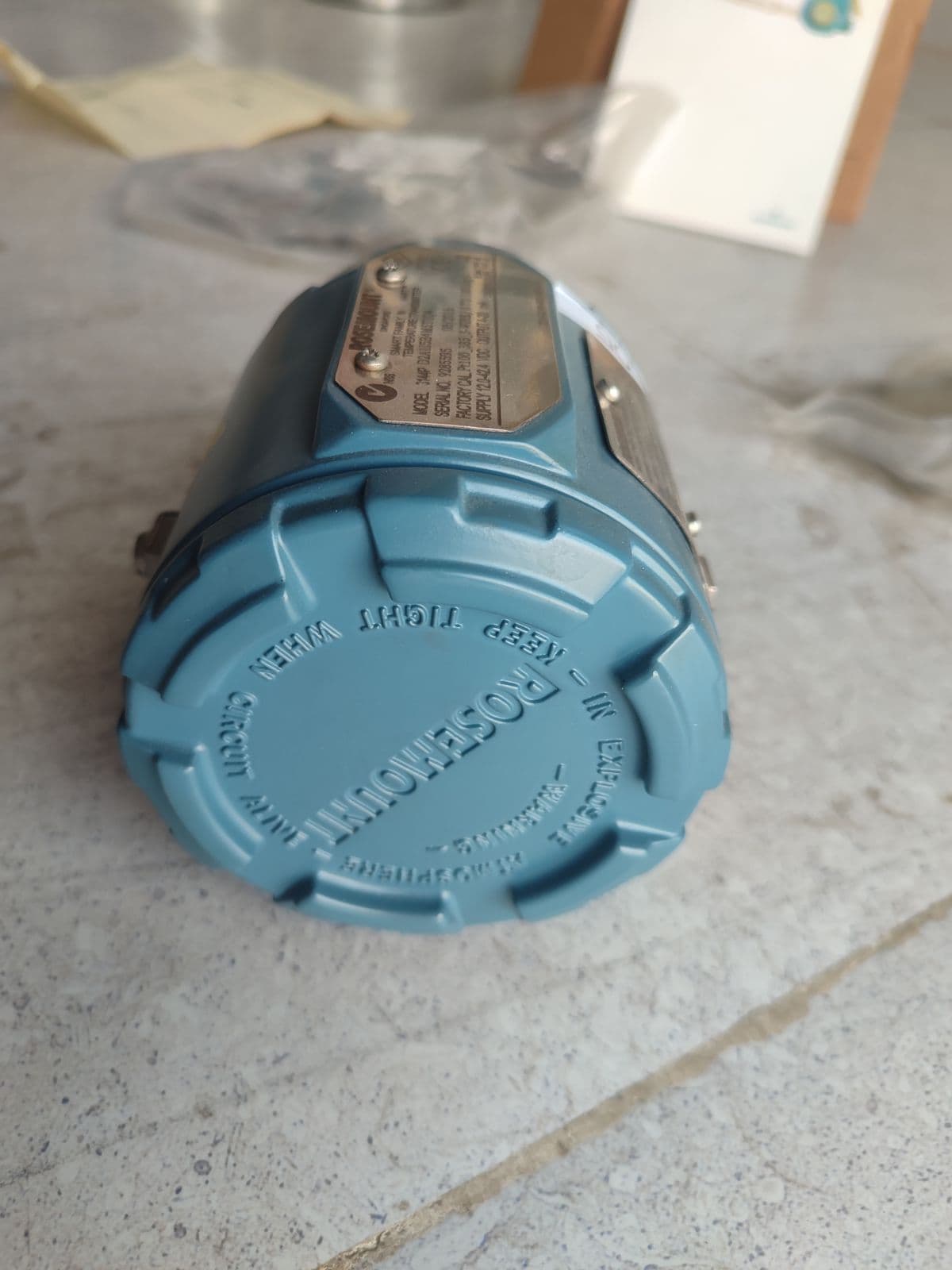

This device is entirely new (new / unused), built in October 2012 (10/12) by Emerson FZE Dubai, and is currently held physically in Barmaan's warehouse. The "Barmaan stock" photographs on this page — including the device nameplate showing model 3144P — were taken of this very item.
Per the nameplate, the output of this unit is specifically FOUNDATION Fieldbus (bus-powered, 9 to 32 V DC), which suits fieldbus networks. The 3144P model is also available in versions with a 4–20 mA HART output; if your system requires HART, Barmaan's engineers will advise.
The 3144P input is universal: it accepts RTDs (such as Pt100), thermocouples, resistance (ohms) and millivolt signals, in single- or dual-sensor form. The digital accuracy for a Pt100 is about ±0.10 °C per official datasheet 00813-0100-4021, and transmitter-sensor matching (Callendar–Van Dusen) improves it by up to 75%.
Per the specification recorded by the technical department, this unit is configured over the range −118 to +100 °C. Because the input is universal and programmable, this range can be changed to suit the project's requirements and the sensor type.
You can submit a proforma invoice request from this page; Barmaan's engineers will confirm the price and delivery terms within one working day at most. The item is in stock, so once the order is confirmed it is ready for collection or shipment with no overseas procurement lead time. Authenticity is guaranteed, and you are welcome to inspect the device in person at the warehouse.
