Level sensors and transmitters measure liquid and solid levels in tanks, silos and process vessels. Barmaan supplies free-space radar (Micropilot), guided-wave radar (Levelflex), ultrasonic, capacitance and float devices plus point-level switches (Liquiphant) from trusted manufacturers, engineered for the vessel, medium and process conditions.
26 GHz K-band non-contact free-space radar level transmitter for liquids, pastes and slurries; fully PTFE-clad antenna, 4-20 mA HART 2-wire, SIL 2. Four second-hand units in stock, each with its own hazardous-area approval and process connection.
Rosemount 3051S ERS (Electronic Remote Sensor) — a 2-wire 4-20 mA HART DP-level system that calculates differential pressure electronically from two linked pressure sensors instead of oil-filled capillaries. This unit is a 300ERS primary housing on a flanged remote seal (JIS 100A / 4-inch). In Barmaan stock.
26 GHz non-contact free-space radar for continuous level measurement of aggressive and hygienic liquids, with a fully PTFE-filled flush horn antenna, 4–20 mA HART output and an IP68/IP66 housing. Five units in Barmaan stock on DN 50, DN 80 and DN 100 PN 16 flanges.
Two-wire FMCW non-contacting radar level transmitter (24.05–27.0 GHz) with 4–20 mA HART output, 316/316L cone antenna on a 4-in./DN100 ASME B16.5 Class 150 flange, and up to 150 m measuring range.
High-frequency (26 GHz) two-wire, loop-powered non-contacting radar level transmitter with 4-20 mA HART output, up to 115 ft (35 m) range and +/-3 mm reference accuracy for liquids, slurries and solids.
Non-contact free-space radar level transmitter for liquids, pastes and sludges, with horn or planar antenna, ±6 mm accuracy, up to +400 °C / 160 bar and SIL 3 functional safety.
Non-contact 26 GHz free-space radar level transmitter for continuous level measurement of powdery to granular bulk solids in tall silos, bins and stockpiles. Range up to 70 m, accuracy ±3 mm, horn or focusing parabolic antenna with air-purge connection and alignment device, 4–20 mA HART on a 2-wire loop.

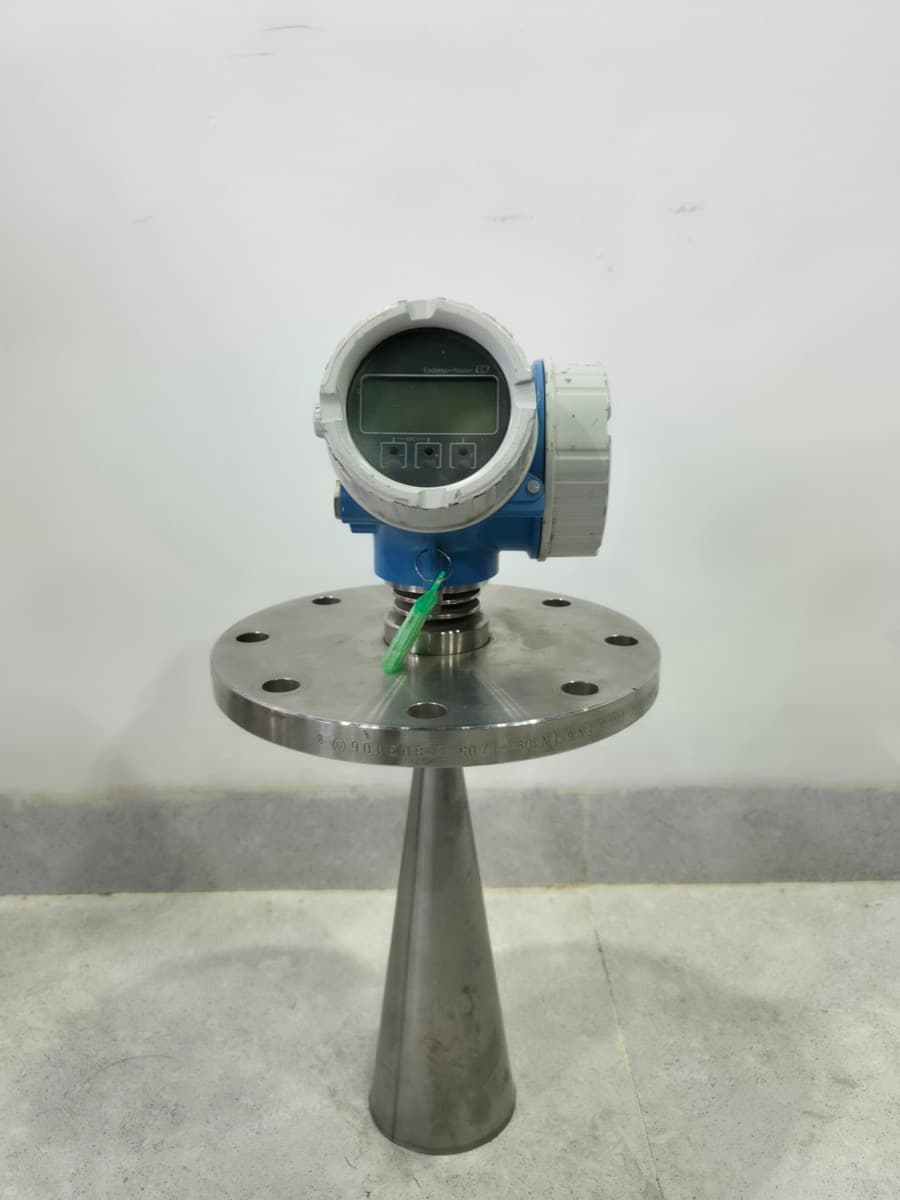

Micropilot FMR51 non-contact radar level transmitter with horn antenna and DN125 PN16 flange, manufactured 2019 (Germany) — new in Barmaan stock. Ex ia version for Zone 0/1, 4–20 mA HART output, ±2 mm accuracy. The photos show the actual unit in our warehouse.

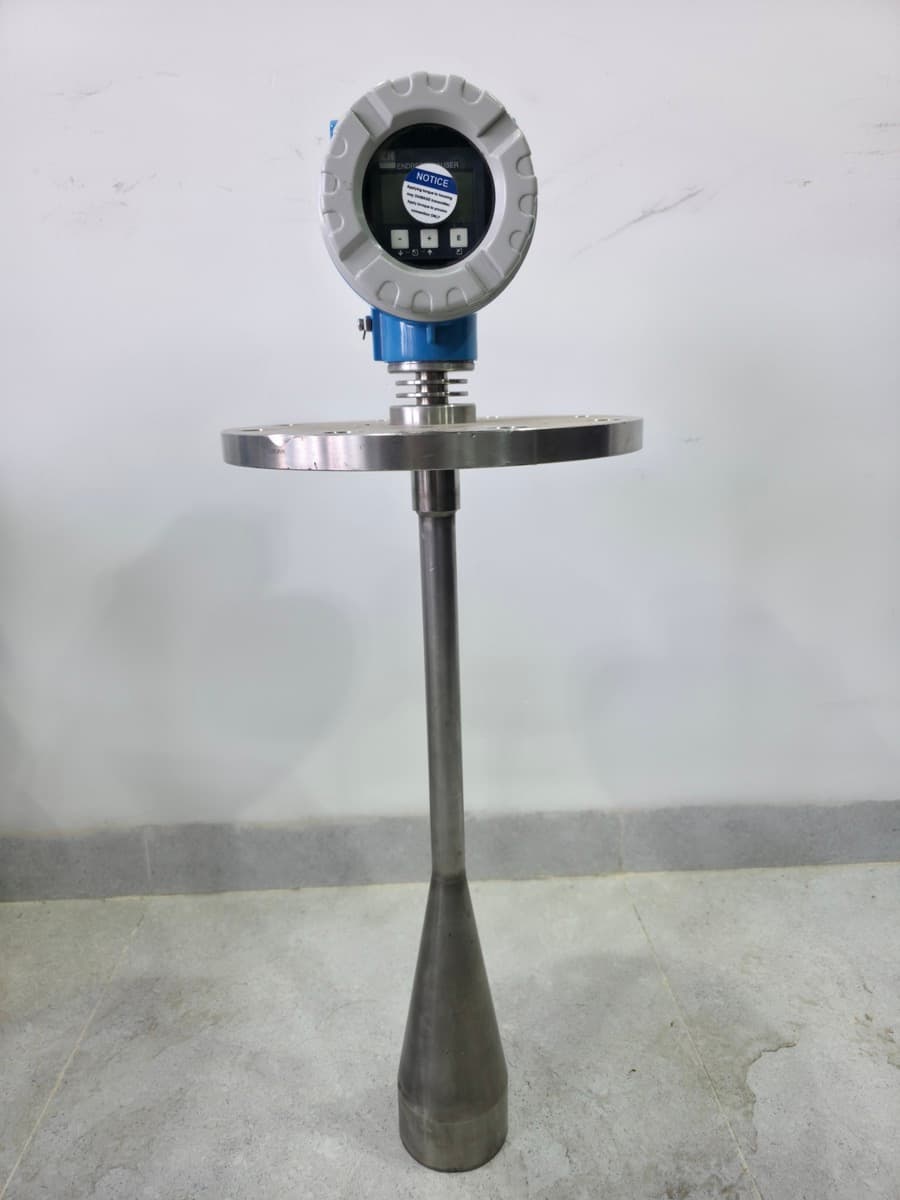

Endress+Hauser Micropilot M FMR240 — non-contact K-band radar level transmitter (≈26 GHz) with horn antenna, 4–20 mA HART two-wire, 40 m measuring range in the basic build. Second-hand equipment held in Barmaan's own warehouse: every unit is photographed nameplate-first and each unit card states the model that unit's own plate says it is.
Micropilot FMR51 non-contact radar level transmitter with NPT½ threaded connection, made 2017 (China) — new, in Barmaan stock. Ex ia version for Zone 0/1, 4–20 mA HART, ±2 mm accuracy. The photos show the actual unit in our warehouse.
6 units in stock
3 units in stock
5 units in stock
Out of stock
Out of stock
Out of stock
2 units in stock
2 units in stock
2 units in stock
