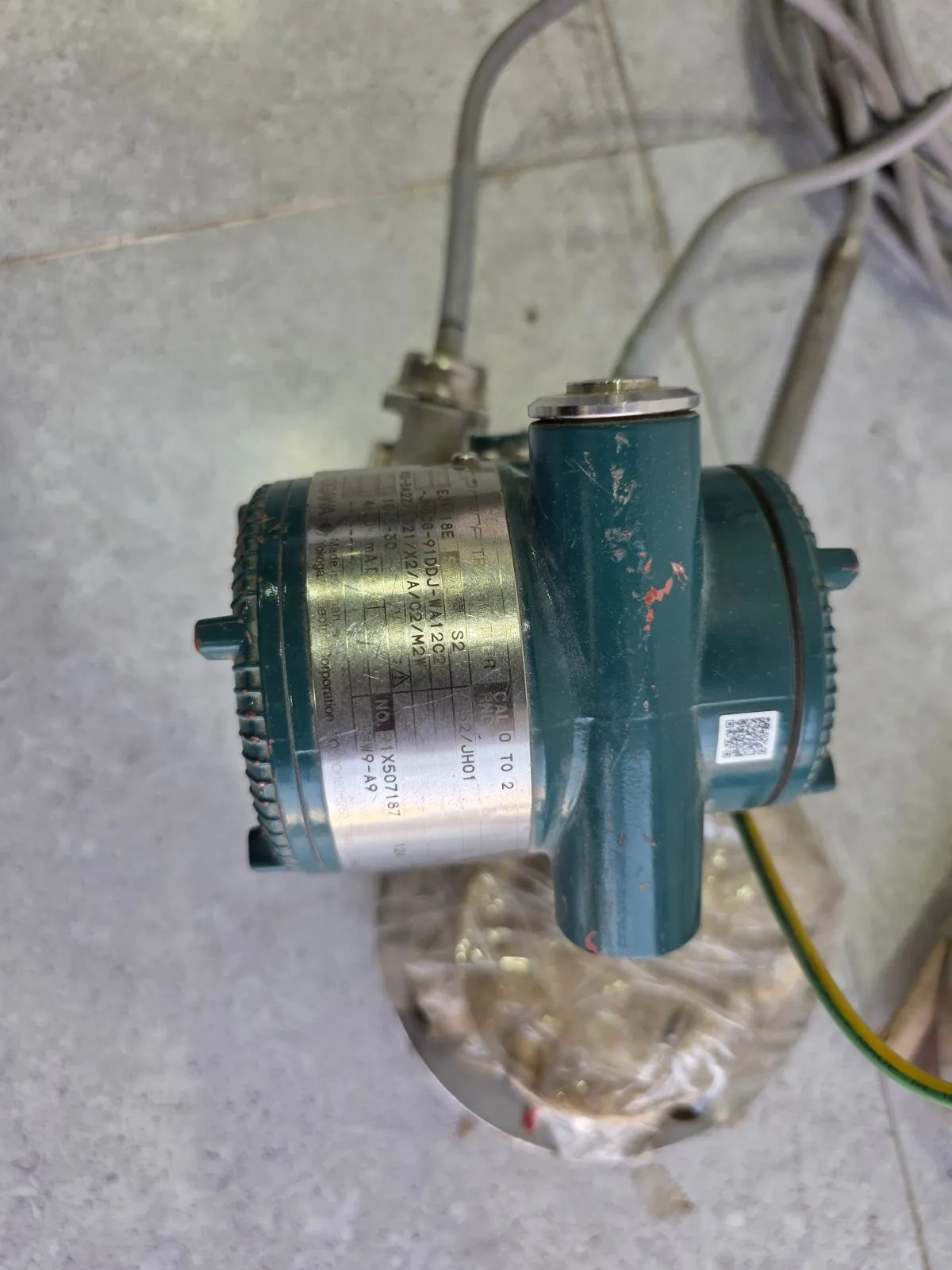

Remote diaphragm-seal differential pressure transmitter with the DPharp digital silicon-resonant sensor, ±0.2% of span accuracy, 4-20 mA HART/BRAIN output and SIL 2 capability. Style S2 unit read from the nameplate: H capsule (25-500 kPa), HART output, 10.5-30 V DC intrinsically-safe supply.
The Yokogawa EJA118E is a diaphragm-sealed differential pressure transmitter from the DPharp EJA-E series. Remote diaphragm seals prevent the process medium from entering the pressure-sensing assembly; the seals are connected to the transmitter with fill-fluid-filled capillaries, making the instrument suitable for hot, viscous, corrosive, crystallizing or slurry services where an impulse-line installation is impractical.
At its heart is the DPharp digital sensor, a silicon resonant element that measures differential pressure, static pressure and sensor temperature from a single chip. These three signals let the transmitter apply real-time dynamic compensation for temperature and static-pressure effects, giving a reference accuracy of ±0.2% of span. The transmitter outputs a 4-20 mA DC signal proportional to differential pressure, and the static pressure can be shown on the integral LCD indicator or read remotely over BRAIN or HART. Response time is about 200 ms.

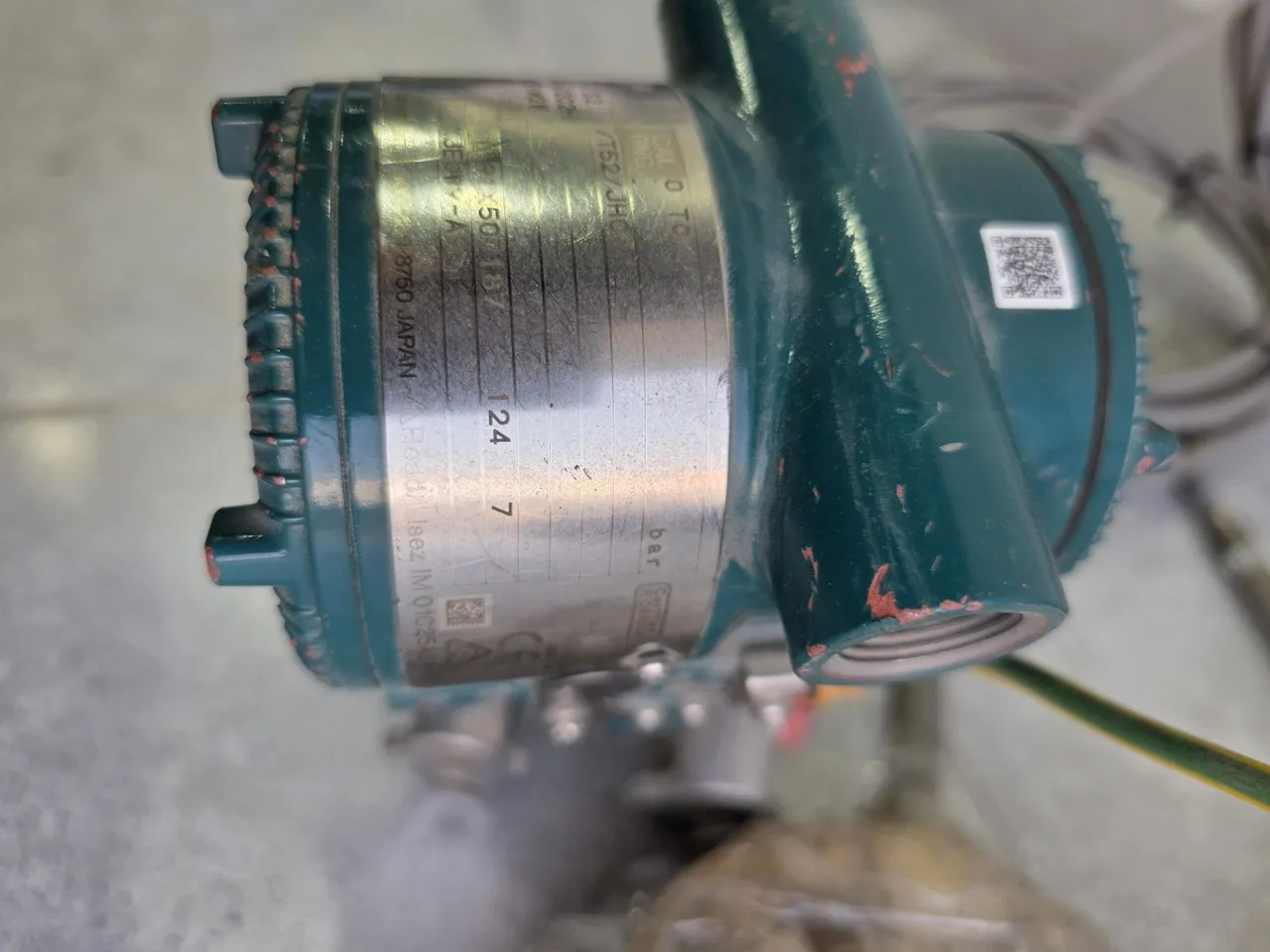

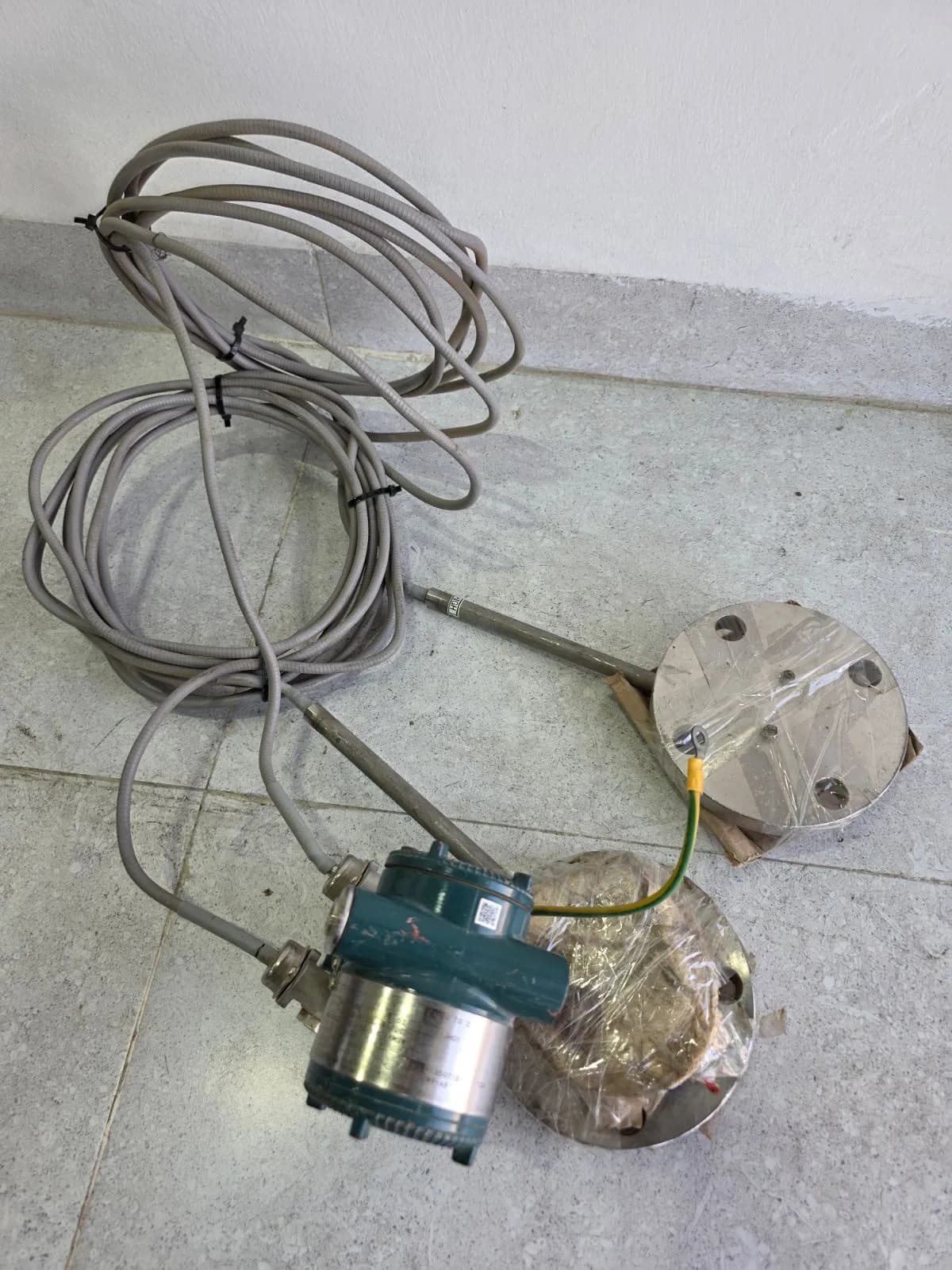

EJA118E can be ordered with M (2.5-100 kPa) or H (25-500 kPa) capsules and with flush, extended or combination diaphragm-seal flanges in 1½-, 2-, 3- and 4-inch sizes to JIS, ANSI, JPI or DIN ratings. Wetted diaphragm materials include 316L SST, Hastelloy C-276, tantalum and titanium; capillary lengths run from 1 to 10 m; fill fluids cover silicone, fluorinated and ethylene-glycol options for process temperatures from -50 to 310 degC. The housing is rated IP66/IP67 (Type 4X).
The EJA-E series in its standard configuration is certified to IEC 61508:2010 for SIL 2 (single) and SIL 3 (dual) use, and the unit is available with FM, CSA, ATEX and IECEx flameproof (Ex db IIC) and intrinsically-safe (Ex ia IIC) approvals plus ANSI/ISA-12.27.01 dual-seal certification. Note: this model has been discontinued by Yokogawa (successors: EJXC80A / EJAC80E), so it is offered as a stock/serviceable item. The nameplate on this specific unit reads model EJA118E, Style S2, HART output, and a 10.5-30 V DC intrinsically-safe supply.
| Attribute | Value |
|---|---|
| General | |
| Sensor | DPharp digital silicon resonant sensor (measures DP, static pressure and sensor temperature) |
| Performance & accuracy | |
| Measurement span - M capsule | 2.5 to 100 kPa (10 to 400 inH2O); range -100 to 100 kPa |
| Measurement span - H capsule (this unit) | 25 to 500 kPa (100 to 2000 inH2O); range -500 to 500 kPa |
| Reference accuracy | ±0.2% of Span (for X <= span); for X > span: ±(0.15 + 0.01 URL/span)% of Span |
| Response time | 200 ms (M and H capsule), incl. 45 ms dead time, at zero damping |
| Static pressure accuracy | ±0.5% of span (absolute pressure 1 MPa or higher); min. setting span 0.5 MPa (73 psi) |
| Process conditions & connection | |
| Ambient temperature effect | ±(0.48% Span + 0.06% URL) per 28°C (50°F) change, M and H capsules |
| Static pressure effect | Span: ±0.02% of span; Zero: ±0.014% of URL, per 0.69 MPa (100 psi) change |
| Ambient temperature limits | -40 to 60°C (-40 to 140°F); -30 to 60°C with LCD display |
| Process temperature | -50 to 310°C depending on fill fluid (e.g. -10 to 250°C silicone A; 10 to 310°C high-temp; -50 to 100°C ethylene glycol) |
| Maximum working pressure | Up to flange rating pressure (JIS/ANSI/JPI/DIN); vacuum service down to 0.013 kPa abs with fill fluid code 1 |
| Process connection | Flush / Extended / Combination diaphragm-seal flanges; 1 1/2, 2, 3, 4-inch; JIS 10K/20K/40K, ANSI Class 150/300/600, JPI, DIN PN10/16-64 |
| Construction & materials | |
| Wetted diaphragm materials | 316L SST, Hastelloy C-276 (N10276), Tantalum, Titanium |
| Fill fluid | Silicone oil, fluorinated oil (oil-prohibited), ethylene glycol (low temp) |
| Capillary length | 1 to 10 m |
| Enclosure / protection | IP66/IP67, Type 4X; low-copper cast aluminum alloy or ASTM CF-8M stainless housing |
| Weight | Flush type 16.1 kg; Extended type 21.7 kg; Combination type 18.9 kg (5 m capillary, no indicator/bracket) |
| Power & output | |
| Output signal | 4 to 20 mA DC with BRAIN (code D) or HART 5/HART 7 (code J); FOUNDATION Fieldbus (F), PROFIBUS PA (G), Low Power 1-5 V DC HART (Q) |
| Supply voltage | 10.5 to 42 V DC (general / flameproof); 10.5 to 32 V DC with lightning protector; 10.5 to 30 V DC for intrinsically safe / type n / non-incendive |
| Load (4-20 mA) | 0 to 1290 Ω for operation; 250 to 600 Ω for digital communication |
| Approvals & safety | |
| Functional safety (SIL) | IEC 61508:2010 — SIL 2 single transmitter, SIL 3 dual transmitter |
| Hazardous-area approvals | FM, CSA, ATEX (Ex db IIC T6..T4 / Ex ia IIC T4), IECEx (Ex db / Ex ia / Ex ic); dual-seal certified ANSI/ISA-12.27.01 |
| Model code | Description | Measuring range |
|---|---|---|
| EJA110E | EJA110E Differential Pressure TransmitterStandard flanged (impulse-line) differential pressure / flow / level transmitter of the DPharp EJA-E series. | L: 0.5-10 kPa, M: 2.5-100 kPa, H: 25-500 kPa, V: 0.14-14 MPa |
| EJA118E ★ | EJA118E Diaphragm-Sealed Differential Pressure Transmitter (this product)Remote diaphragm-seal DP transmitter with flush/extended/combination seal flanges and fill-fluid capillaries for tough process media. | M: 2.5-100 kPa, H: 25-500 kPa |
| EJA120E | EJA120E Draft-Range Differential Pressure TransmitterLow-differential-pressure (draft) transmitter of the EJA-E series for very small DP such as furnace draft. | E: 0.1-1 kPa, F: 0.5-5 kPa |
| EJA130E | EJA130E High-Static-Pressure Differential Pressure TransmitterHigh-static / high-working-pressure differential pressure transmitter of the DPharp EJA-E series. | M: 2.5-100 kPa, H: 25-500 kPa (working pressure up to 32 MPa) |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.
The M capsule covers a differential-pressure span of 2.5 to 100 kPa (range -100 to 100 kPa), while the H capsule covers 25 to 500 kPa (range -500 to 500 kPa). Both give ±0.2% of span reference accuracy. This particular unit uses the H capsule.
Yes. This is a genuine Yokogawa DPharp EJA118E, identified from its nameplate (model EJA118E, Style S2, HART output, 10.5-30 V DC intrinsically-safe supply, made in Japan). The EJA118E line is discontinued by Yokogawa (successors EJXC80A / EJAC80E), so it is offered as a stock/serviceable item. Barmaan issues a formal proforma invoice on request; contact us for current price, availability, exact suffix decoding, calibration certificate and lead time before ordering.
