Cerabar S PMP75 pressure transmitter with flanged diaphragm seal, 0…2 bar absolute range and PROFIBUS PA — new, made in Germany, in Barmaan stock, ±0.075% accuracy. The photos show the actual unit in our warehouse.

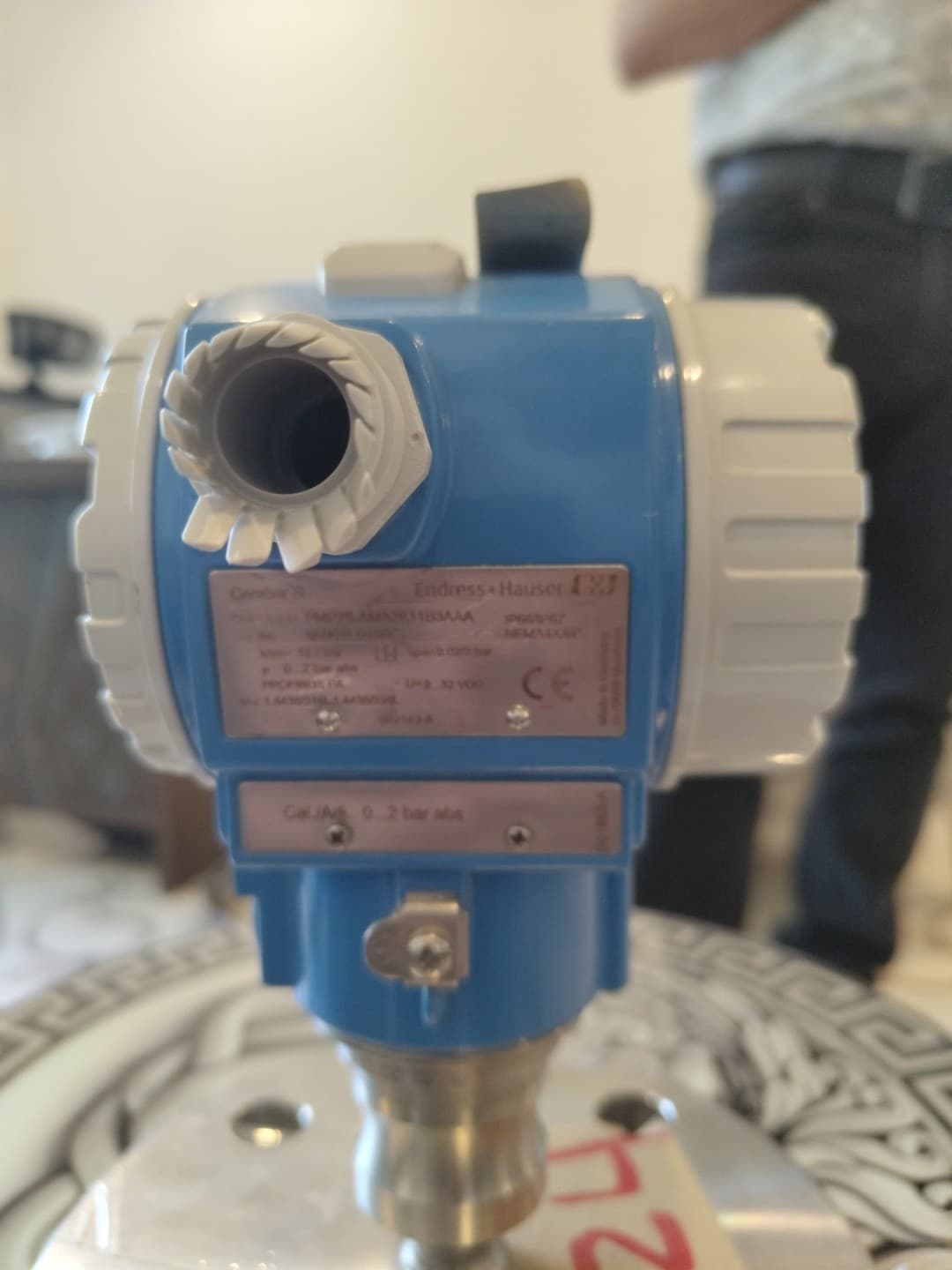

The Endress+Hauser Cerabar S PMP75 pressure transmitter is the top-tier member of the Cerabar S family: a metal piezoresistive sensor combined with a flanged diaphragm seal that makes it suitable for hot, viscous, corrosive media and for processes where the medium must not reach the sensor directly. This unit is brand new and physically in stock at the Barmaan warehouse; all the "Barmaan warehouse" images on this page were taken of this very device, and its nameplate — with order code PMP75-A4A2K11B3AAA — is visible in the images.
This unit is calibrated for absolute pressure measurement from 0 to 2 bar (second nameplate: Cal./Adj. 0…2 bar abs), its span is adjustable from 0.02 to 2 bar, and it withstands a maximum working pressure of 13.7 bar — a good combination for vacuum processes, condensers and process vessels. Per the official TI00383P datasheet, the reference accuracy for this sensor is ±0.075% of set span, and the family's long-term stability is 0.05% URL per year.
The device communicates over PROFIBUS PA: it is powered directly from the bus (9 to 32 V DC) and the measured values are transmitted digitally to the control system — a natural choice for sites with a fieldbus infrastructure. The housing, with IP66/IP67 (NEMA 4X/6P) ingress protection, is suitable for outdoor installation, and the wetted parts are made of 1.4439/316L stainless steel.
The device has a local display and HistoROM®/M-DAT memory to retain the configuration, and a red warehouse label ("E24") is affixed to its flange to identify the product row. This unit is the General Purpose version (without an Ex marking) and is suitable for installation in ordinary areas.
For years the Cerabar S has been one of the most widely used pressure transmitters in the chemical, petrochemical, power and food industries; the PMP75 version with a diaphragm seal is this family's standard for demanding applications.
Barmaan is a supplier of industrial instrumentation equipment; this item is offered with an authenticity guarantee, the option of an in-person warehouse inspection, selection consulting and installation and commissioning support. To receive a price, submit a proforma-invoice request from this page.
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Endress+Hauser (Germany — Maulburg) |
| Model / Order code | Cerabar S PMP75 — PMP75-A4A2K11B3AAA |
| Device type | Process Pressure Transmitter — metallic sensor + flanged diaphragm seal |
| Performance & accuracy | |
| Measuring range (this unit) | 0…2 bar absolute (Cal./Adj. 0…2 bar abs) |
| Adjustable span | 0.02…2 bar |
| Reference accuracy | ±0.075% of set span (2 bar abs sensor, TD 1:1…5:1, per TI00383P) |
| Long-term stability | 0.05% of URL/year (ranges ≥1 bar, per TI) |
| Process conditions & connection | |
| Max. working pressure (MWP) | 13.7 bar |
| Process connection | Flanged diaphragm seal — wetted parts 1.4439/316L |
| Construction & materials | |
| Ingress protection | IP66/IP67 — NEMA 4X/6P |
| Power & output | |
| Output / Communication | PROFIBUS PA (bus-powered) |
| Supply voltage | 9…32 V DC (via PROFIBUS PA bus) |
| Ambient temperature (with display) | −20…+70 °C (family, per TI) |
| Configuration memory | HistoROM® / M-DAT |
| Approvals & safety | |
| Certification | CE — general purpose (no Ex marking on nameplate) |
| Condition & availability | |
| Condition | New / نو — Barmaan stock (warehouse marker E24) |
| Model code | Description | Measuring range |
|---|---|---|
| PMC71 | Cerabar S PMC71 — ceramic sensorOil-free capacitive ceramic sensor — vacuum and overload resistant | 100 mbar…40 bar |
| PMP71 | Cerabar S PMP71 — metallic sensor, direct connectionPiezoresistive with welded metallic diaphragm, direct connection — high pressures | 400 mbar…700 bar |
| PMP75 | Cerabar S PMP75 — with diaphragm seal ★ this unitMetallic sensor + diaphragm seal for high temperatures and viscous/corrosive media — this unit 0…2 bar abs, PROFIBUS PA | 400 mbar…40 bar |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.
This device is completely new (New / Unused), manufactured at the Endress+Hauser factory in Germany (Maulburg), and it is currently physically in stock at the Barmaan warehouse. The page photos — including the device nameplate with order code PMP75-A4A2K11B3AAA — were all taken of this very item in the Barmaan warehouse.
In the PMP75 the pressure sensor is connected to the process through an oil-filled flanged diaphragm seal. This design is needed when the medium is hot, viscous, corrosive or prone to crystallizing, or when the process temperature exceeds the sensor's limit. The wetted parts of this unit are made of 1.4439/316L and transmit the process pressure without the medium contacting the sensor directly.
PROFIBUS PA is an industrial digital fieldbus: the device is powered directly from the bus (9 to 32 V DC) and the data is transmitted digitally to the DCS/PLC. This unit is a direct choice for systems that have a PROFIBUS PA network (such as Siemens PCS7); if your system requires 4-20mA HART, the Cerabar S family is also available in a HART version — Barmaan's experts will advise you.
Per the nameplate, the calibrated range is 0 to 2 bar absolute with an adjustable span from 0.02 to 2 bar and a maximum working pressure of 13.7 bar. According to the official TI00383P datasheet, the reference accuracy for the 2 bar absolute sensor is ±0.075% of set span (up to a 5:1 turndown).
This unit is specifically the General Purpose version: no Ex marking (ATEX/IECEx) is printed on the nameplate and it carries only CE — so it is suitable for ordinary areas (Safe Area). The Cerabar S family also has Ex ia/Ex d versions; if your project requires it, Barmaan's experts will advise on supplying the appropriate version.
You can submit a proforma-invoice request from this page; Barmaan's experts will announce the price and delivery terms within one business day at most. The item is in stock and, once the order is confirmed, it is ready for delivery or shipping with no waiting time for foreign supply. Authenticity is guaranteed, and an in-person inspection of the device at the warehouse is also possible.
