UsedCoriolis mass flowmeter with a Promass F sensor in DN80 (3") for high-accuracy simultaneous measurement of mass flow, density and temperature of liquids and gases. 4-20 mA HART output, IP67, ATEX/IECEx. Used units in stock at Barmaan.
The Endress+Hauser Promass 80F is a Coriolis mass flow measuring system for the highly accurate, simultaneous measurement of mass flow, density and medium temperature of liquids and gases in demanding process plants. The measuring principle is based on the controlled generation of Coriolis forces: an exciter sets the two parallel measuring tubes into anti-phase oscillation, and the mass flowing through them produces a phase shift between the inlet and outlet halves of the tubes that is directly proportional to mass flow. Because the principle works directly on mass, the reading is inherently independent of temperature, pressure, viscosity, conductivity and flow profile, so no inlet or outlet straight runs are required.

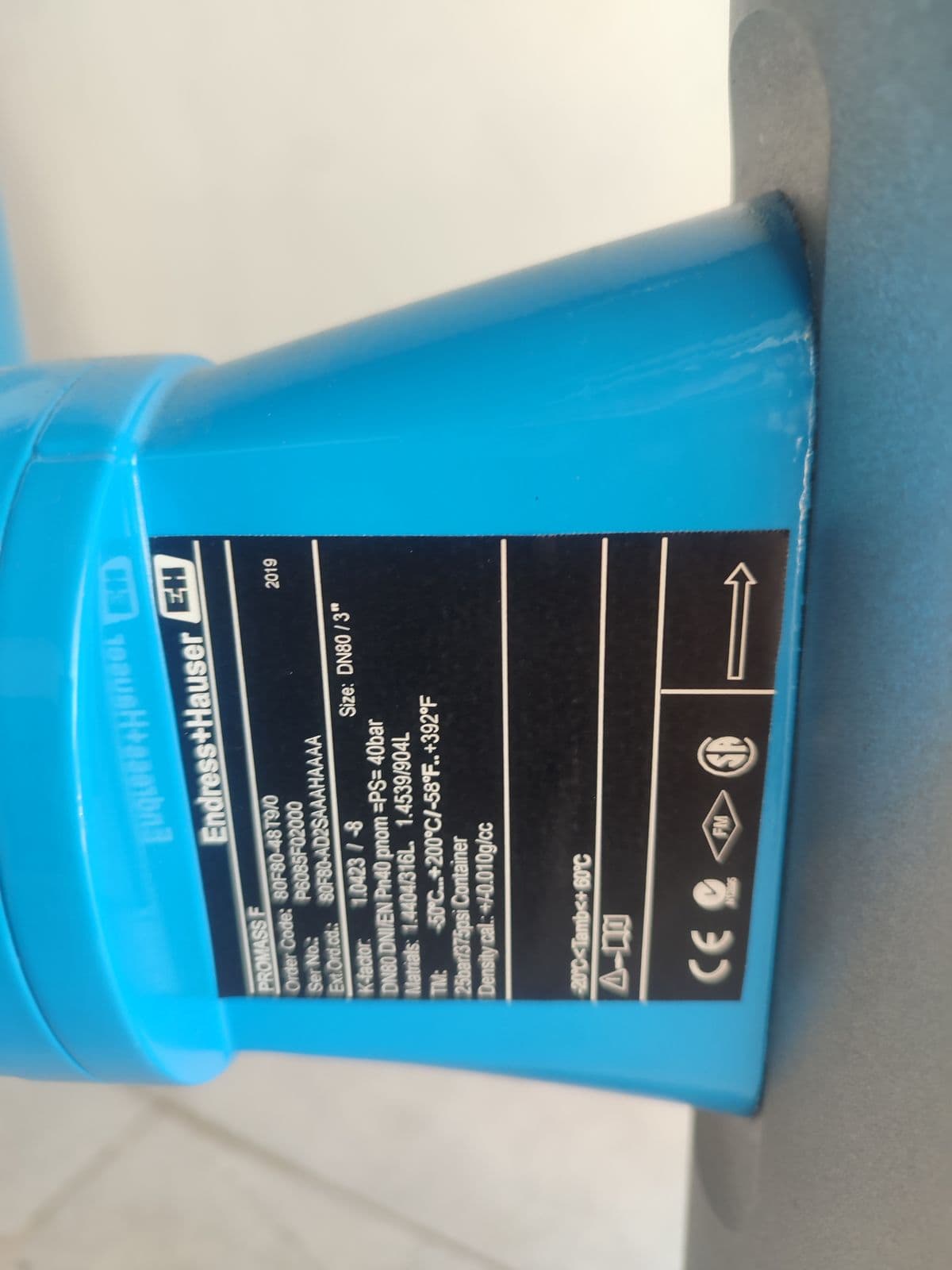

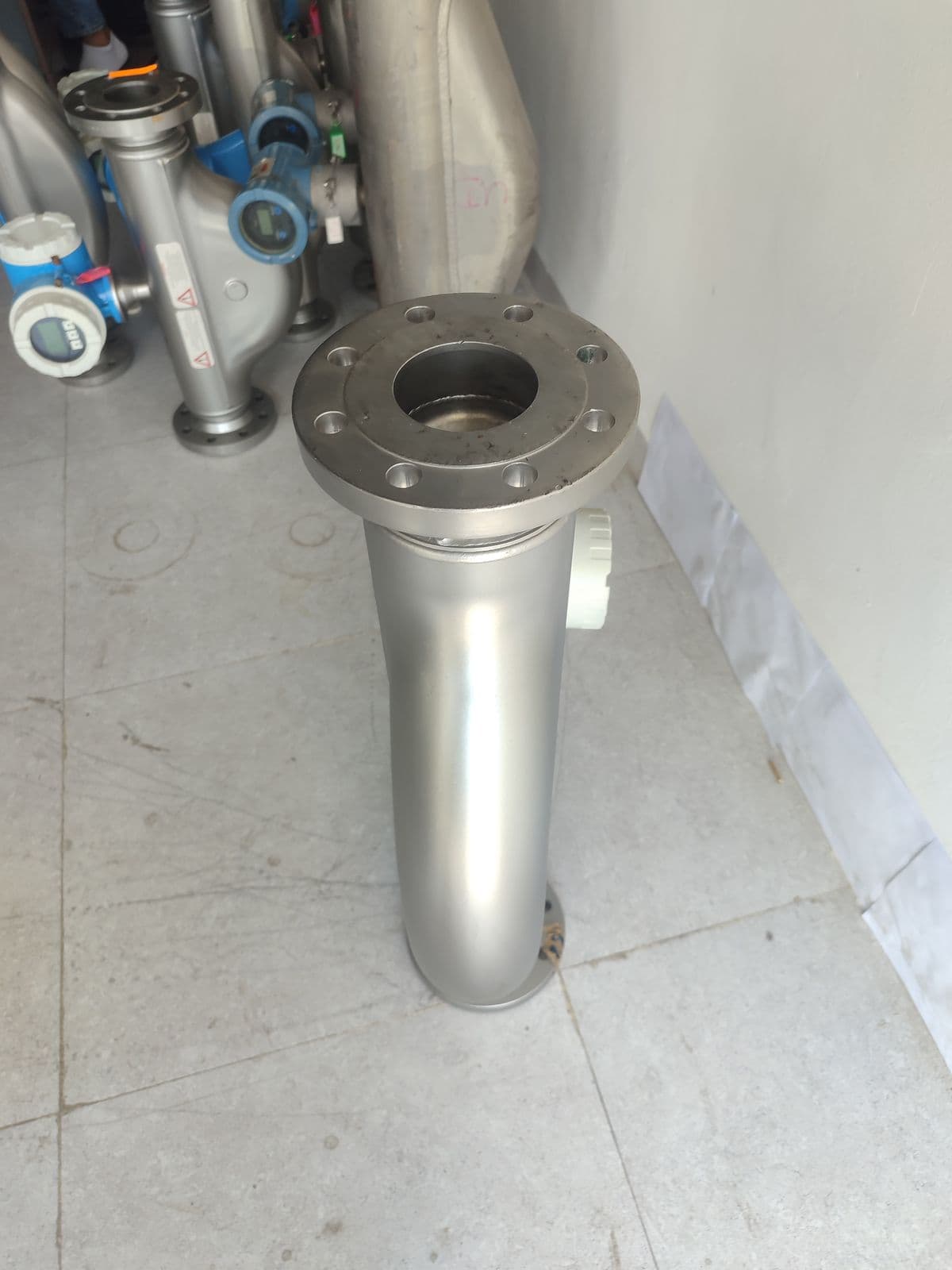

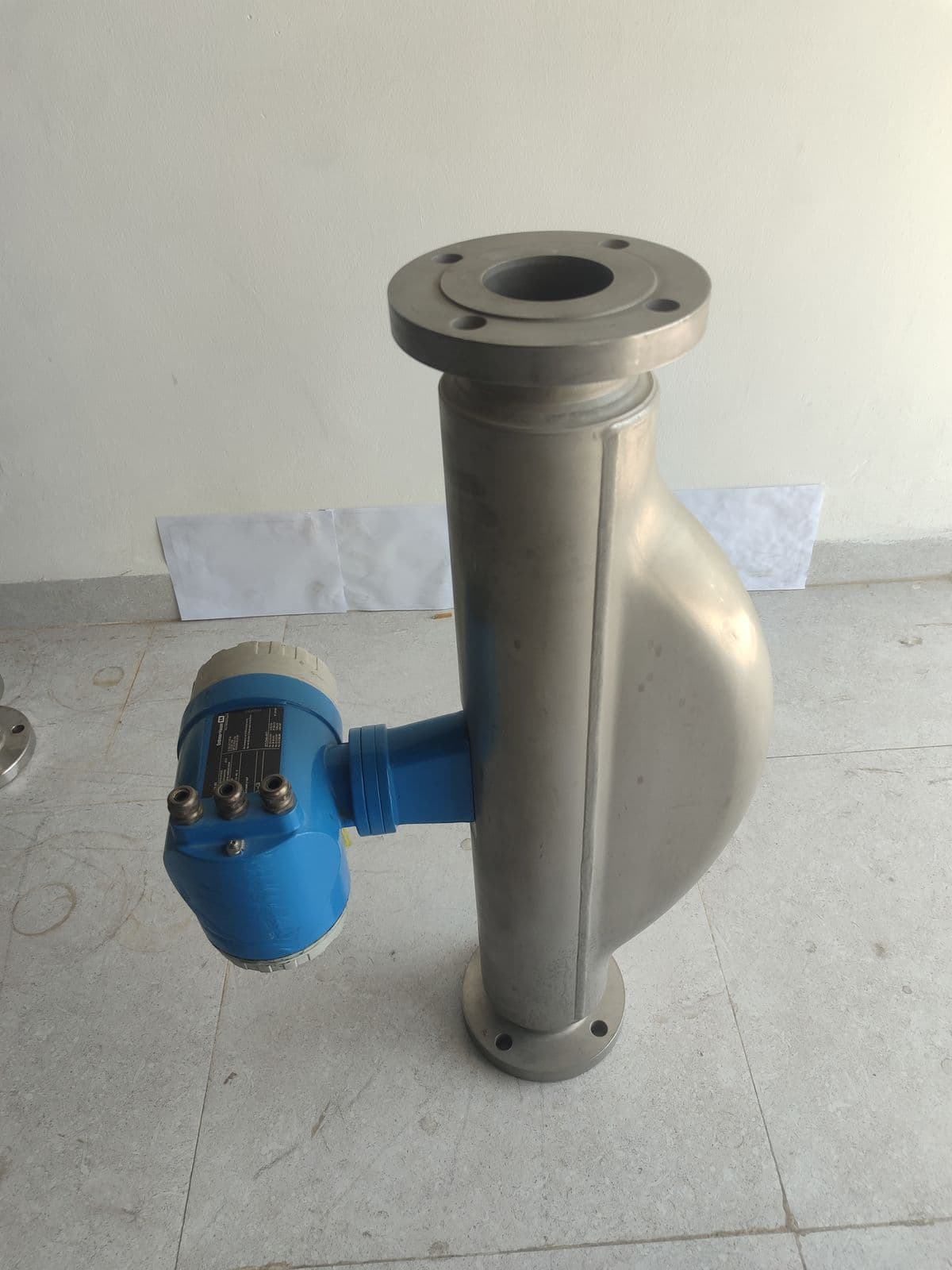

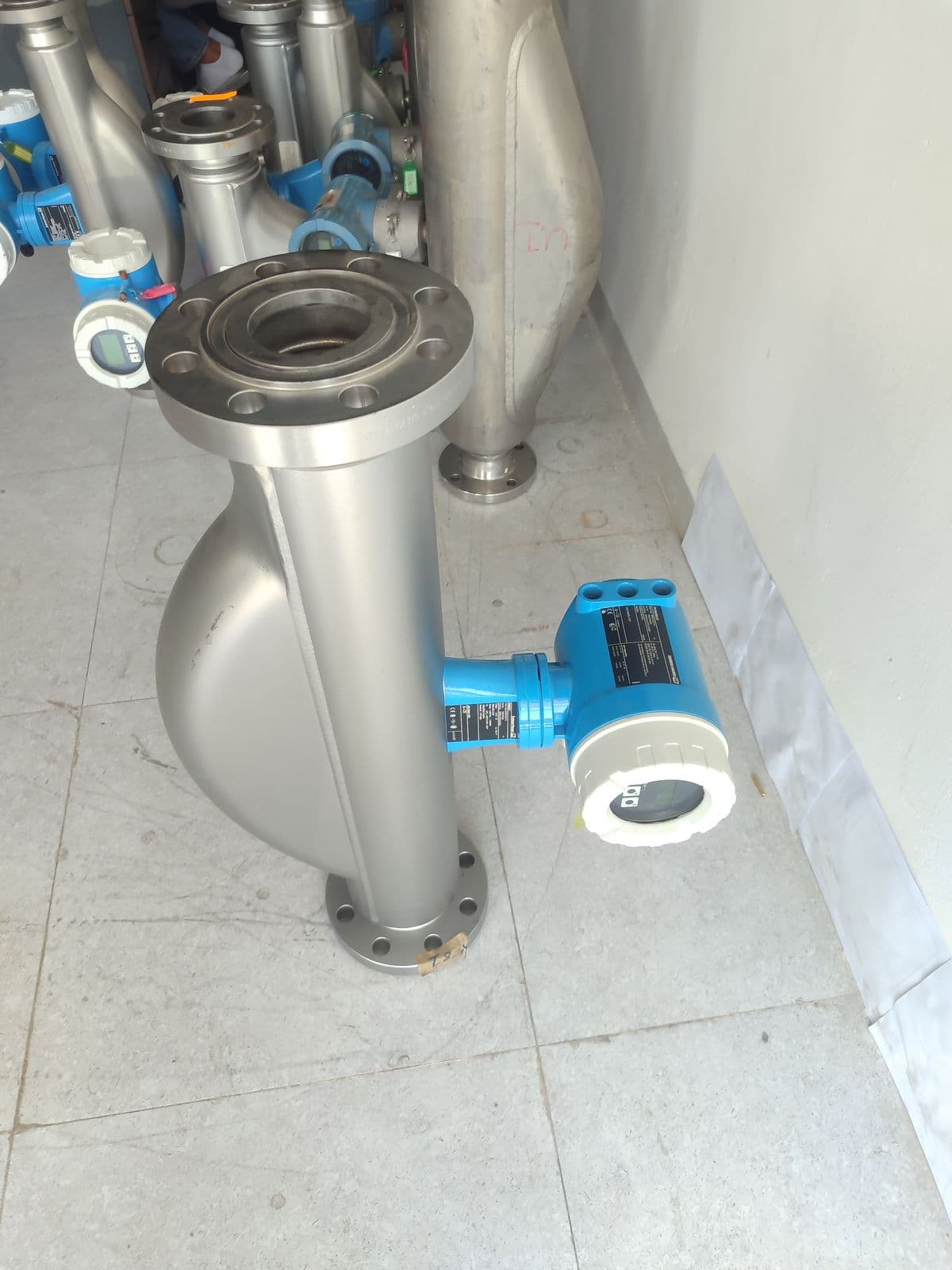

This listing covers Promass 80F sensors in nominal diameter DN80 (3"); six of the seven have their order code read directly off the nameplate (prefix 80F80). The 80F designation is the Promass F sensor — the robust, high-performance workhorse of the Promass family, with dual curved measuring tubes. Wetted parts on the standard units are stainless steel 316L (1.4404) with 904L (1.4539) manifolds; two of the units carry Alloy C-22 (2.4602 / N06022) flanges, stamped into the flange edge. The stainless secondary containment (sensor housing) is pressure-rated as a safety barrier.
The 80 transmitter delivers a 4-20 mA current output with HART digital communication plus a pulse/frequency output, driving a two-line local display. Measuring accuracy for mass flow of liquids is up to +/-0.10 % of reading (down to +/-0.05 % with the optional PremiumCal calibration), volume flow +/-0.15 %, and density +/-0.0005 g/cm3. Standard medium temperature is -50 to +200 C; ambient temperature is -20 to +60 C; housing protection is IP67 / NEMA 4X.

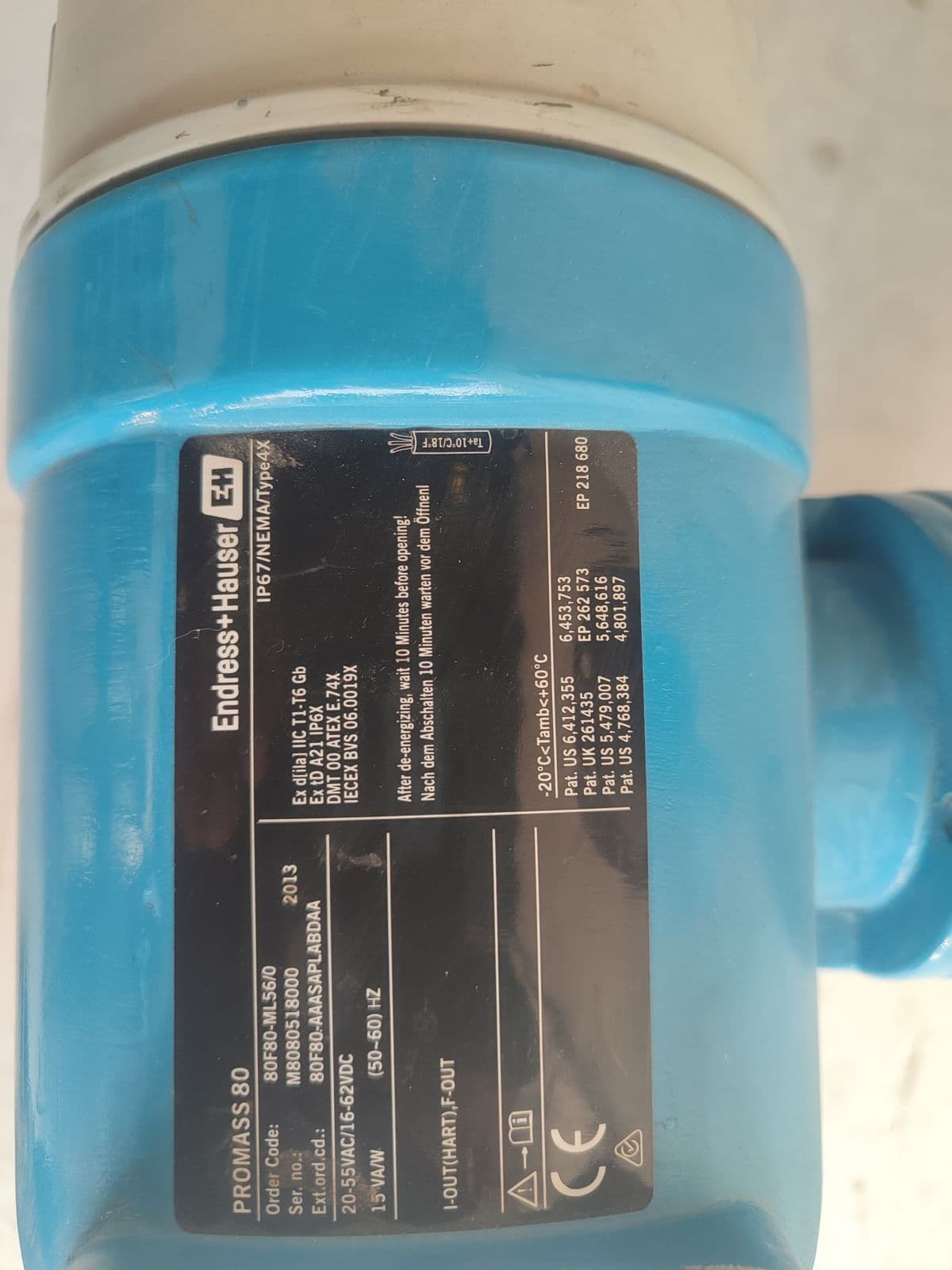

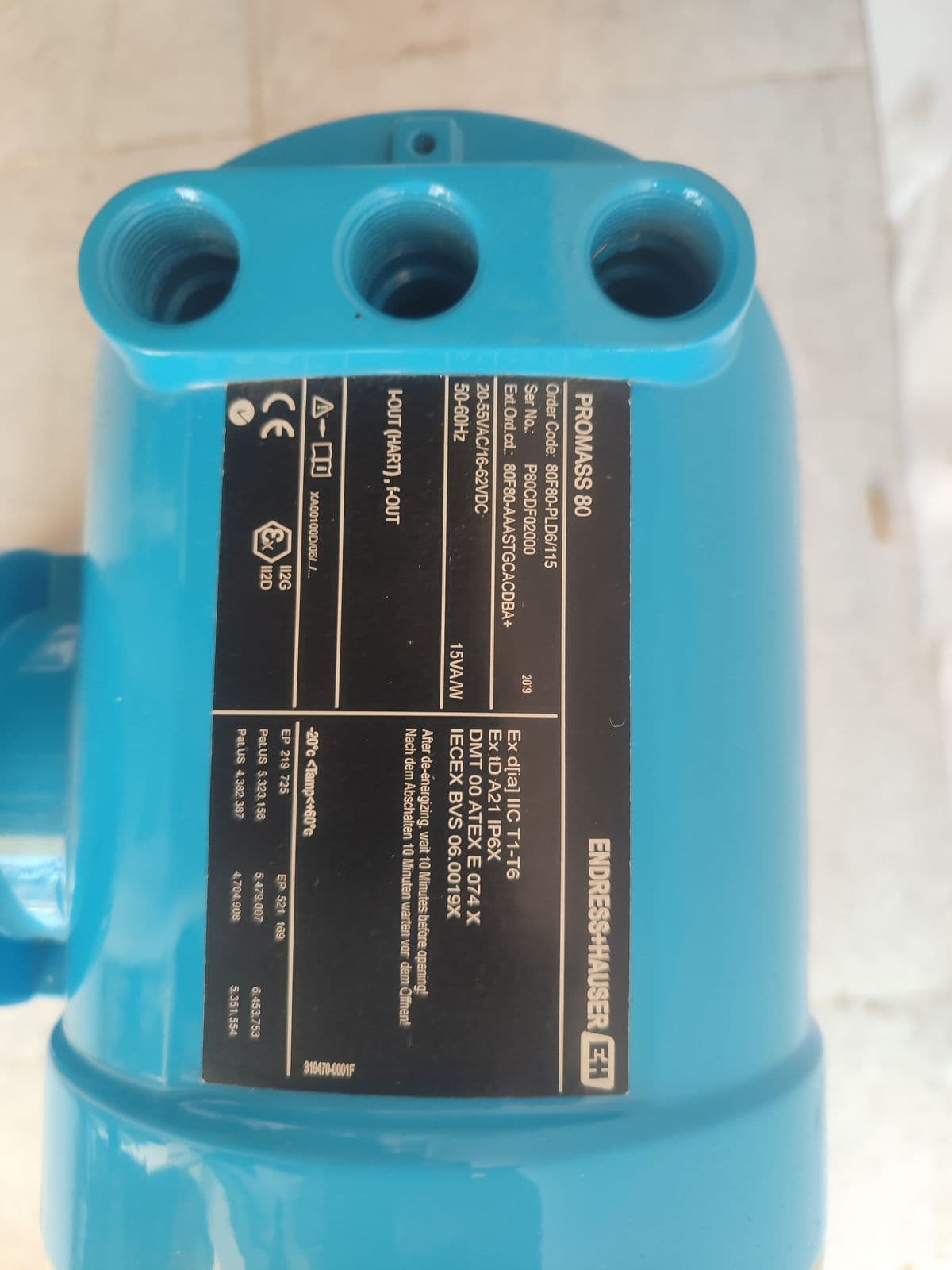

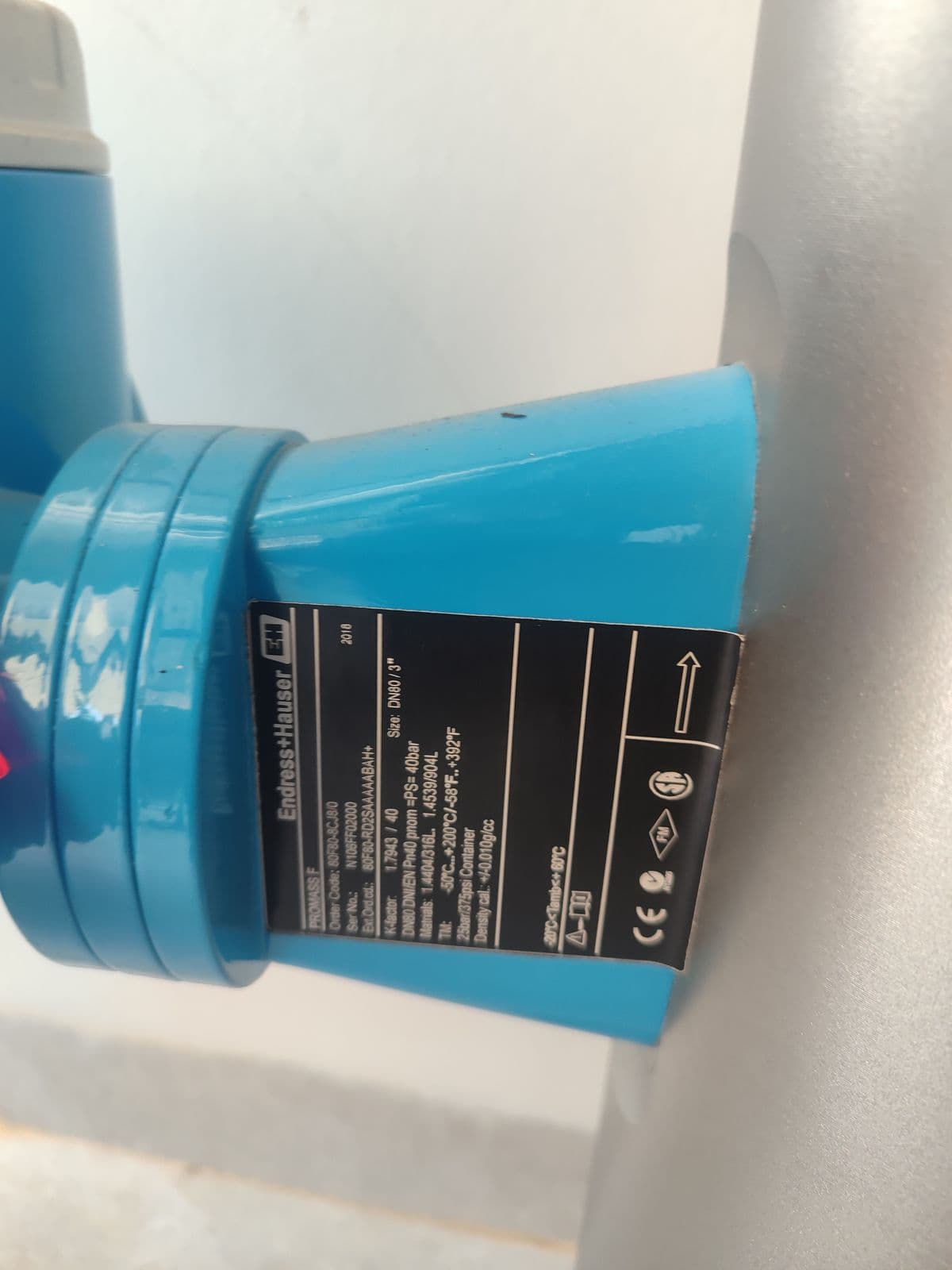

The stock covers four flange ratings — EN/DIN PN40, ASME B16.5 Class 150, ASME B16.5 Class 300 and JIS 10K — so a wide range of process conditions can be matched; the rating stated for each unit is the one stamped into its own flange, and on two units that number is not the same as the factory order code because the meter was re-flanged — both numbers are given on the unit itself. The units carry hazardous-area approvals (ATEX II 2G / II 2D, IECEx; nameplates show ATEX BVS 06.0019X). Every device is a genuine, physically in-stock unit at Barmaan; a proforma invoice and pre-purchase inspection can be arranged directly from this page.
| Attribute | Value |
|---|---|
| General | |
| Measuring principle | Coriolis mass flow (dual curved measuring tubes, anti-phase oscillation) |
| Measured variables | Mass flow, density, medium temperature (volume flow calculated) |
| Sensor / model | Promass F (order-code prefix 80F80); order code read from six of the seven nameplates |
| Performance & accuracy | |
| Measuring accuracy — mass flow (liquid) | ±0.10% o.r. (optional PremiumCal ±0.05% o.r.) |
| Accuracy — volume flow / density | Volume flow ±0.15% o.r.; density ±0.0005 g/cm³ |
| Process conditions & connection | |
| Nominal diameter (this page) | DN 80 (3") |
| Medium temperature range | -50 to +200 °C (every unit, per nameplate) |
| Ambient temperature range | -20 to +60 °C (per nameplate) |
| Construction & materials | |
| Wetted materials | Stainless steel 316L (1.4404) / 904L (1.4539); two units have Alloy C-22 (2.4602 / N06022) flanges |
| Degree of protection | IP67 / NEMA 4X |
| Power & output | |
| Output signal | 4-20 mA with HART + pulse/frequency output (I-OUT (HART), F-OUT) |
| Power supply (per nameplate) | 20-55 V AC / 16-62 V DC, approx. 15 VA/W |
| Approvals & safety | |
| Hazardous-area approval (nameplate) | ATEX II 2G / II 2D, IECEx (ATEX BVS 06.0019X; DMT 00 ATEX E 074 X) |
| Condition & availability | |
| Process connection / rating (in stock) | Flanges EN/DIN PN40, ASME B16.5 Class 150, ASME B16.5 Class 300, JIS 10K (DN80 / 3") |
| Model code | Description | Measuring range |
|---|---|---|

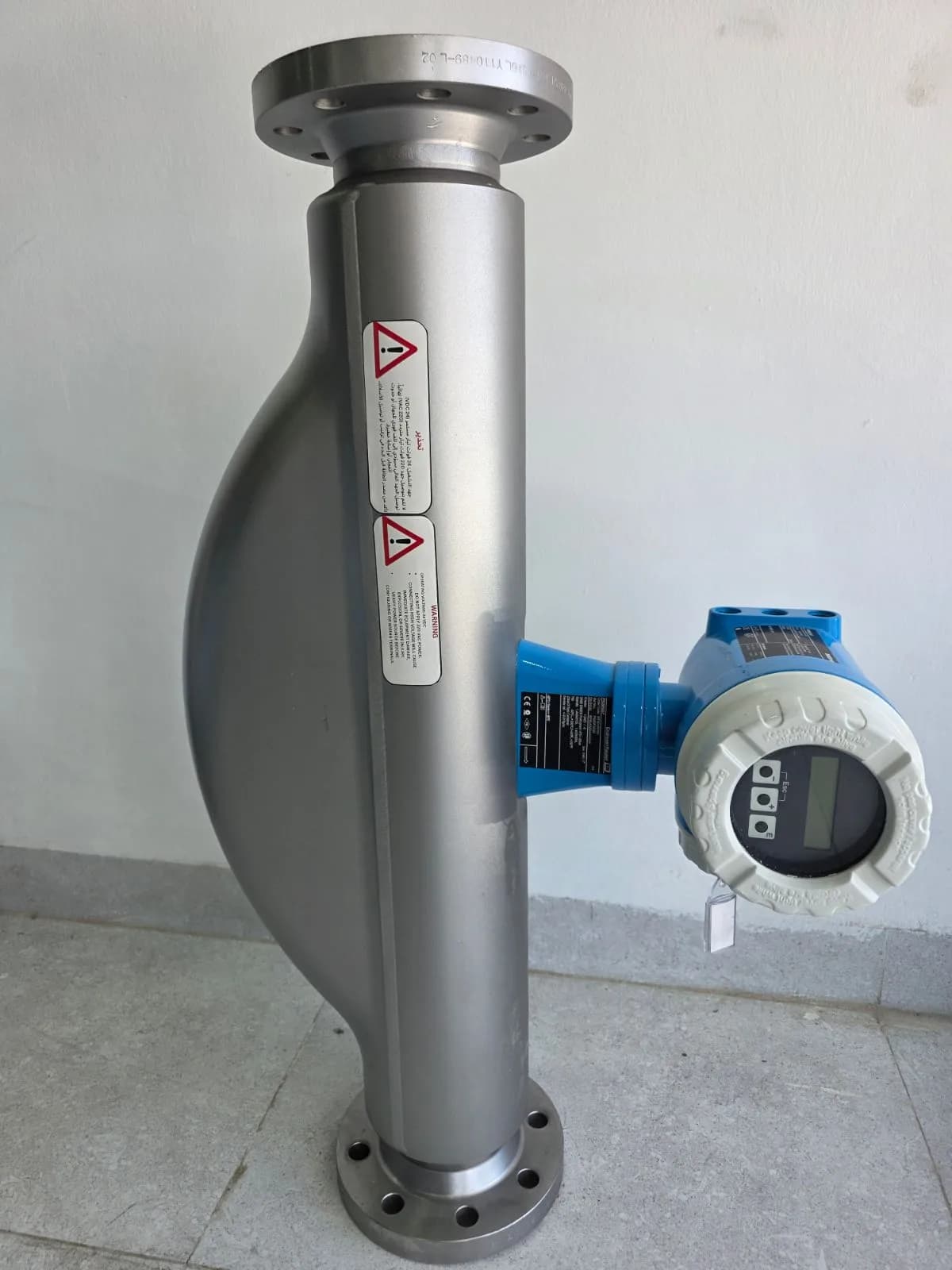

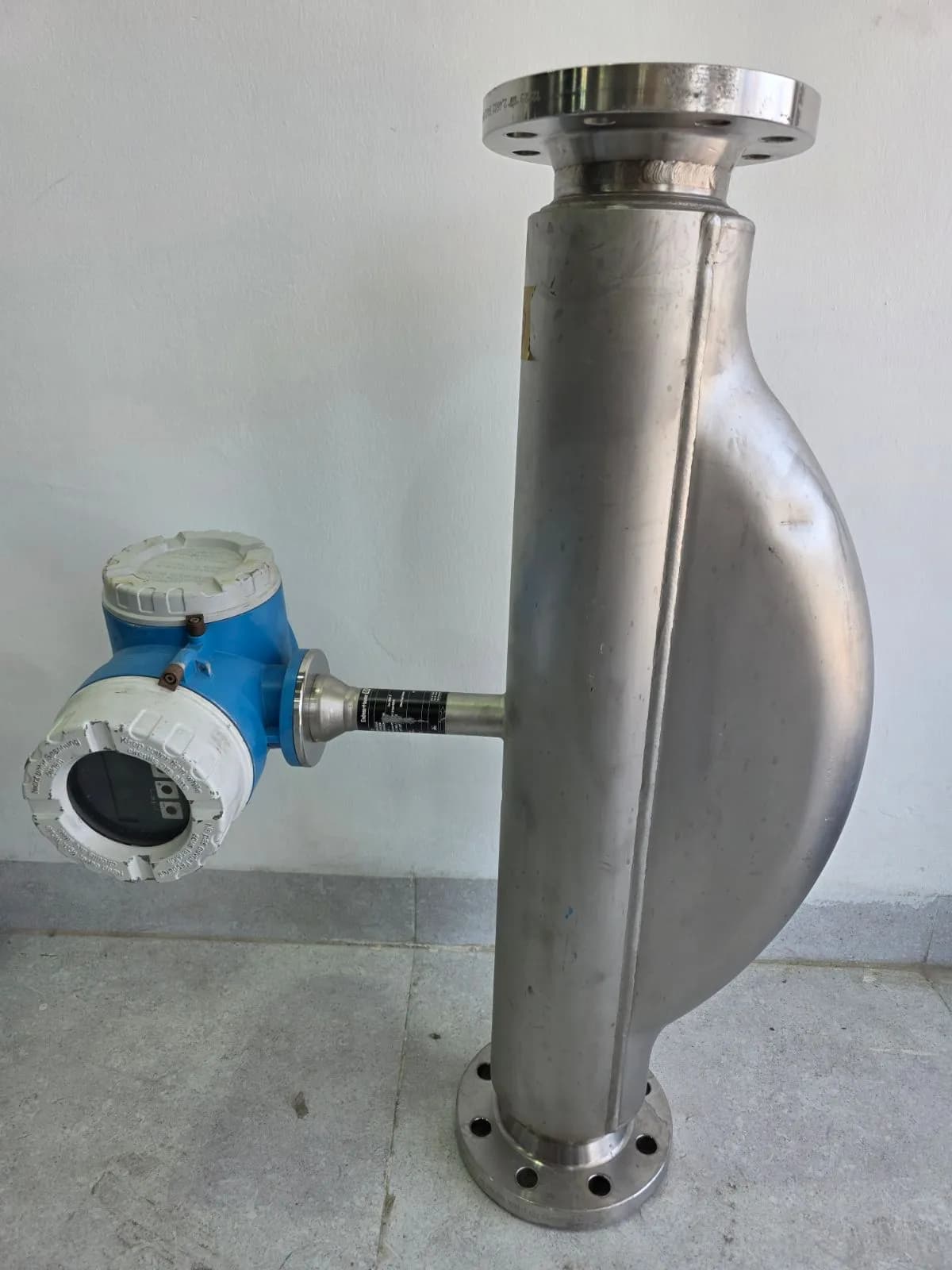

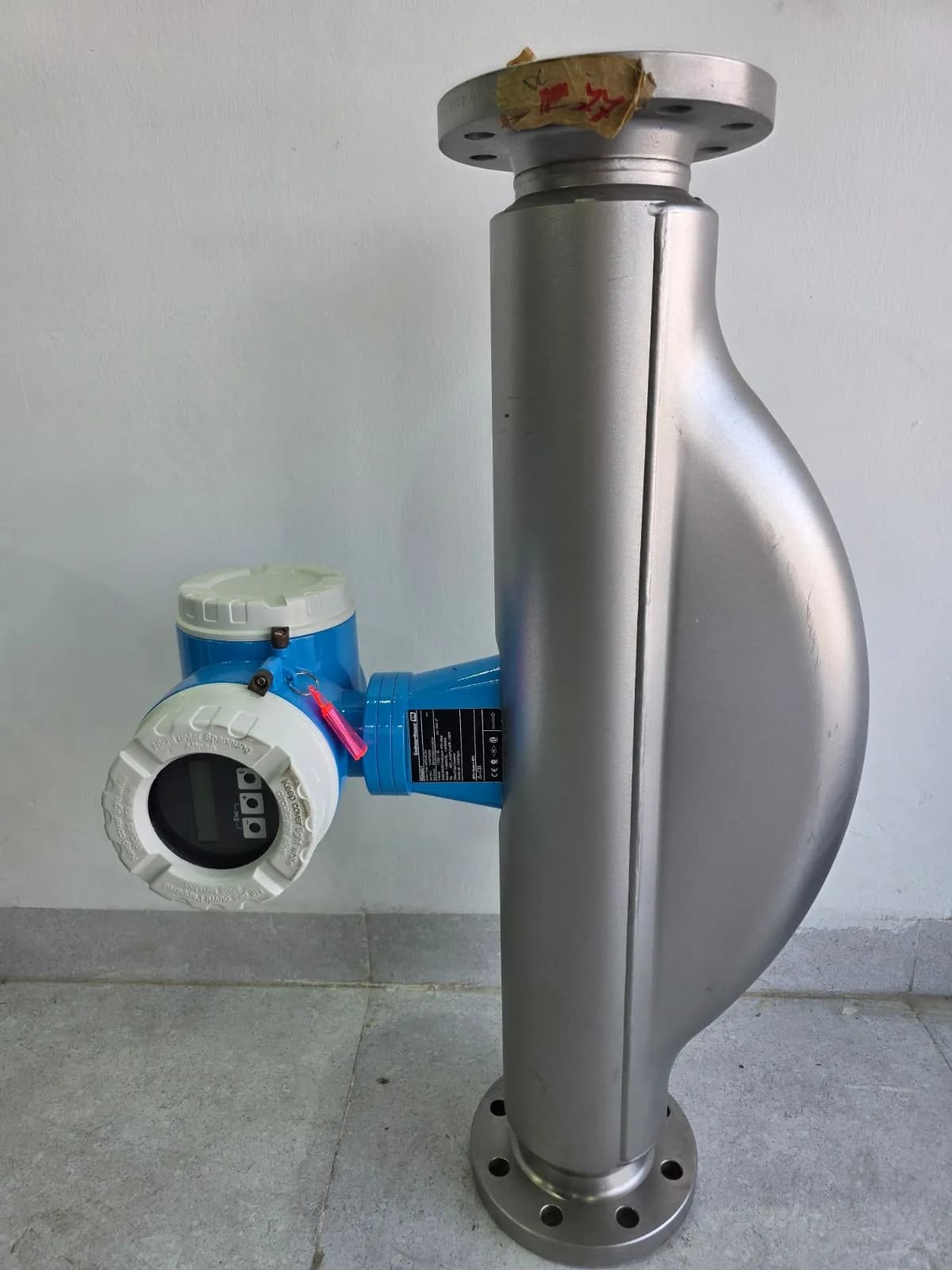

| PN40 | DN80 · EN/DIN PN40 flangePromass 80F DN80 with EN/DIN PN40 flanges, wetted parts 316L/904L. One of the three PN40 units in stock has Alloy C-22 (N06022) flanges. | DN80 (3"), PN40, medium -50 to +200 °C |

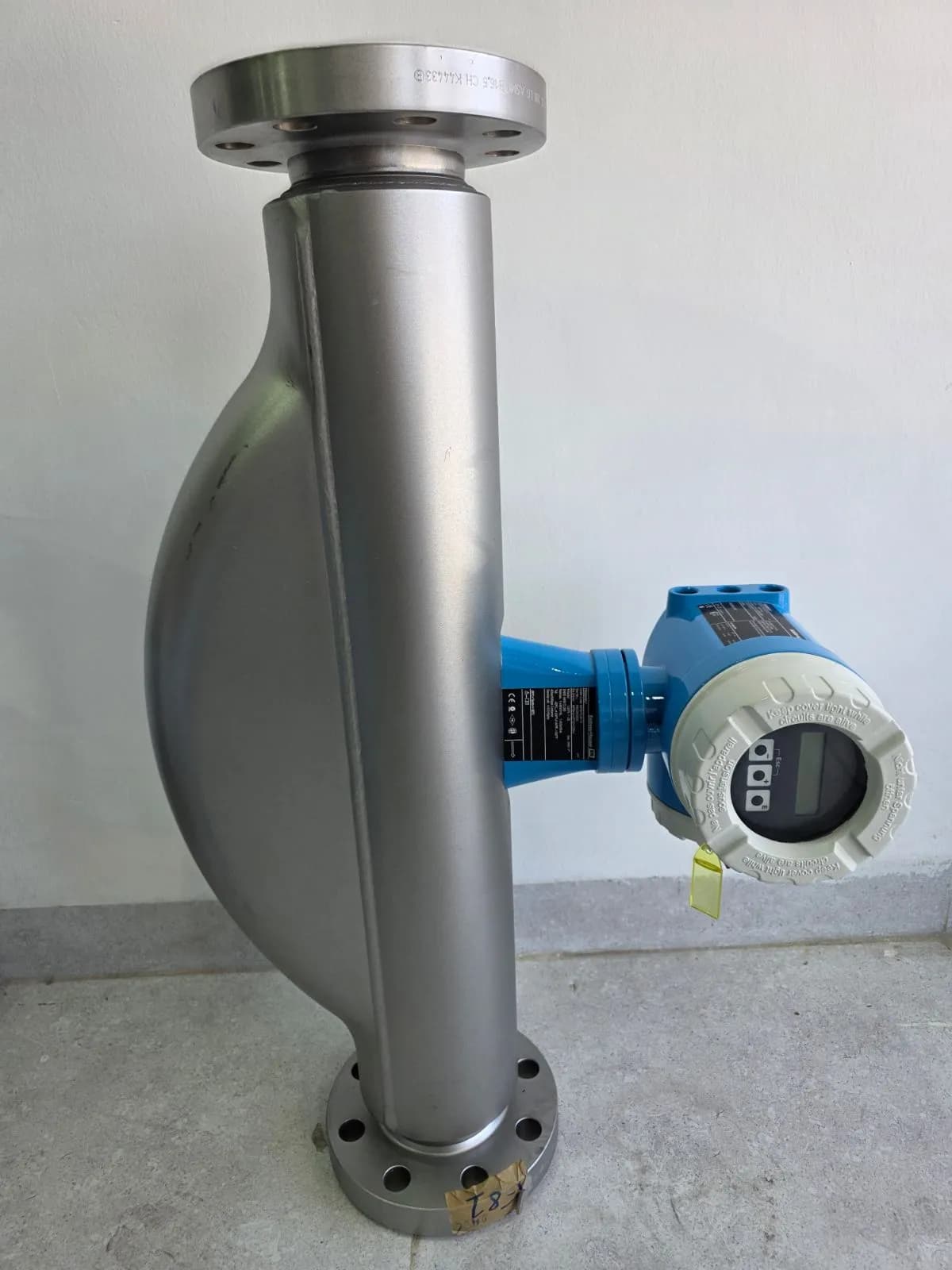

| CL300 | DN80 · ASME Class 300 flangePromass 80F DN80 with ASME B16.5 Class 300 (3") flanges. The Class 300 unit in stock has Alloy C-22 (N06022) flanges and a 40 bar secondary containment. | DN80 / 3", ASME Class 300 |

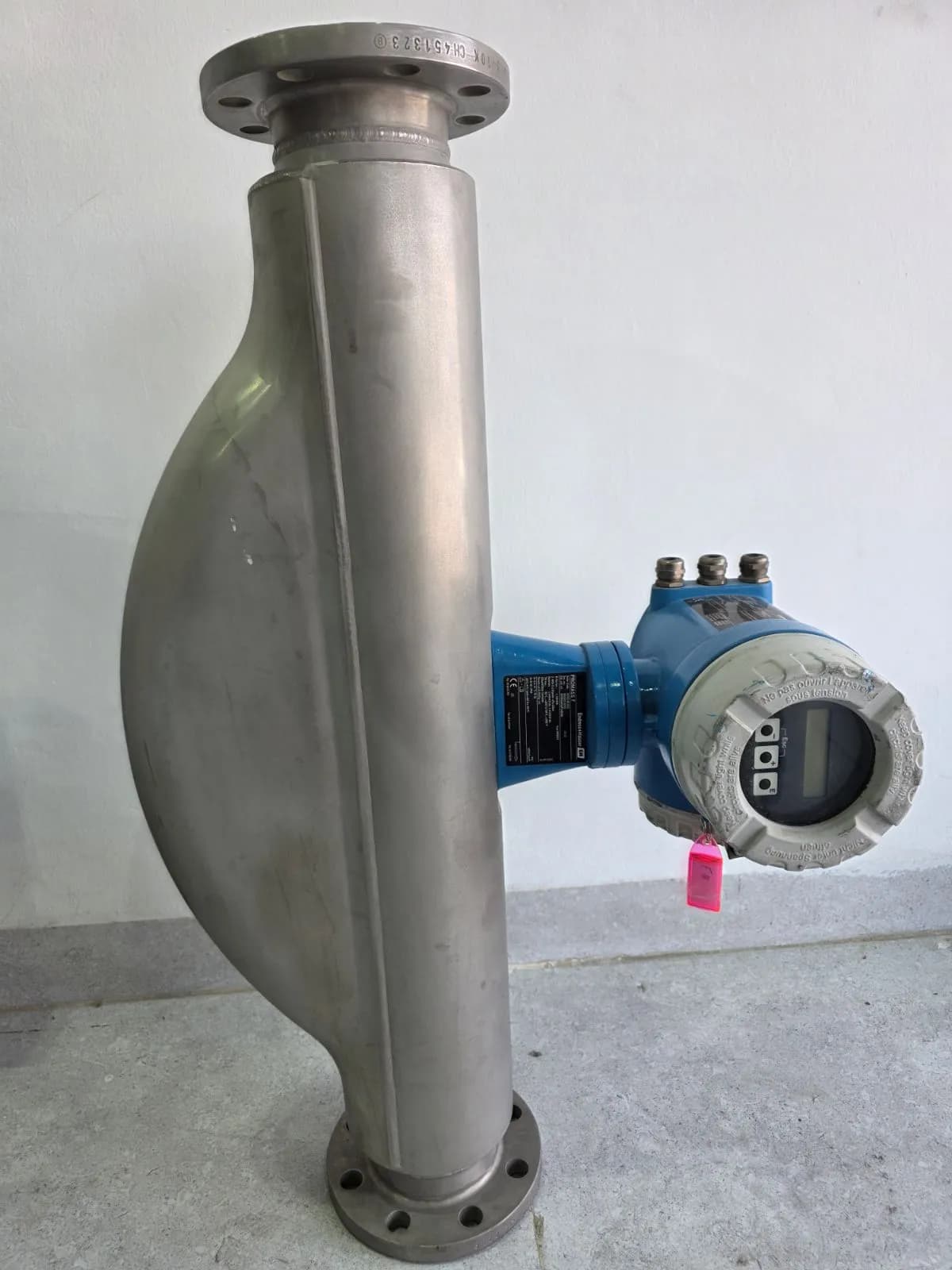

| JIS10K | DN80 · JIS 10K flangePromass 80F DN80 with JIS 10K flanges for Japanese-standard piping. | DN80, JIS 10K |

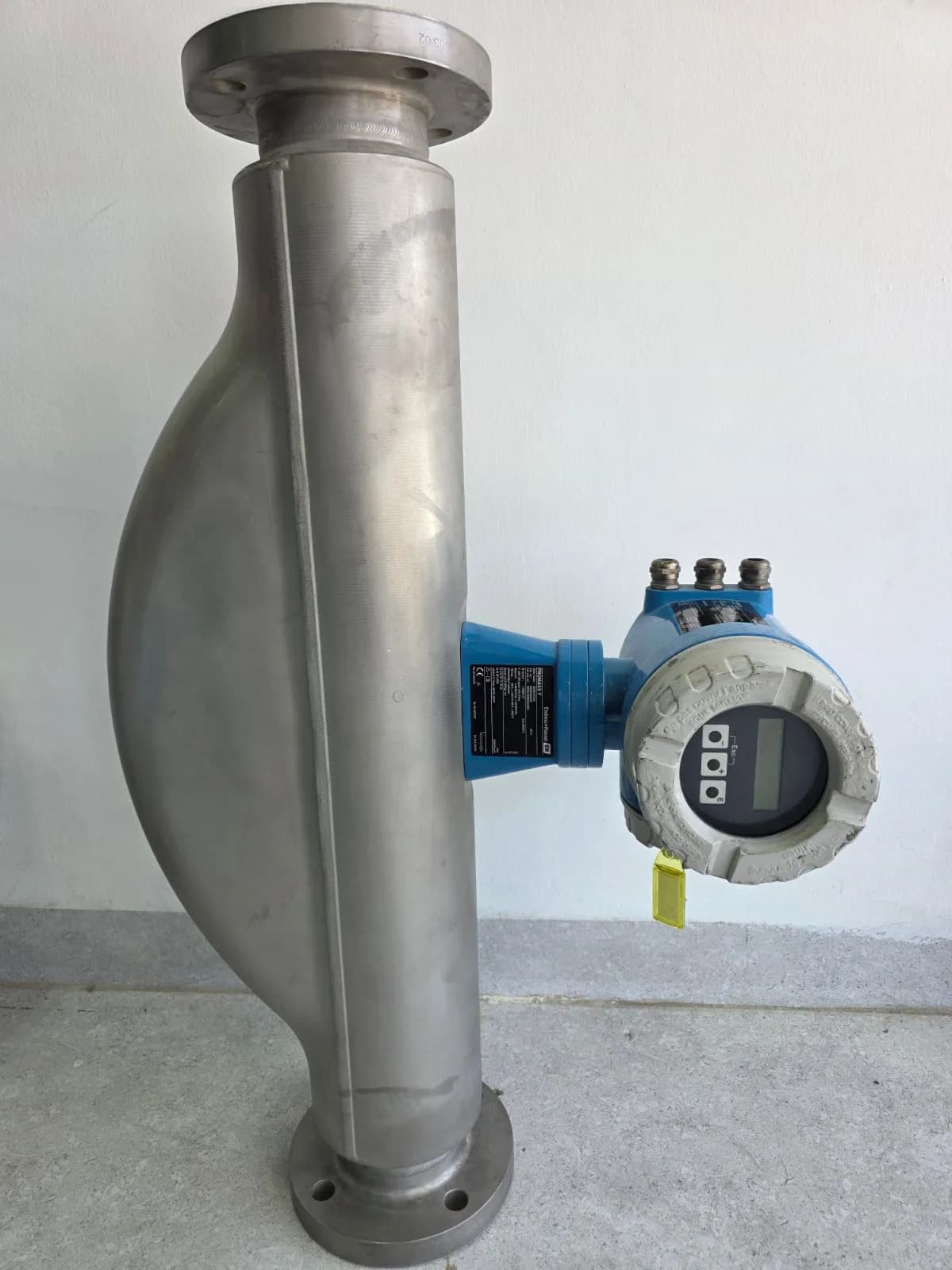

| CL150 | DN80 (3") · ASME Class 150 flangePromass 80F DN80 with ASME B16.5 Class 150 flanges — lower pressure rating for ANSI-standard lines. | DN80 (3"), ASME Class 150, medium -50 to +200 °C |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.
It is a Coriolis mass flowmeter that measures mass flow, density and medium temperature of liquids and gases simultaneously, and derives volume flow. The measurement is based directly on mass, so it is independent of fluid properties.
For the Promass F sensor, mass flow of liquids is measured to within ±0.10% of reading, improving to ±0.05% with the optional PremiumCal calibration. Volume flow is ±0.15% and density ±0.0005 g/cm³, per the official Endress+Hauser Technical Information.
Every unit on this page is DN80 (3"), and six of the seven have their order code read off the nameplate (prefix 80F80). The flange ratings in stock are EN/DIN PN40, ASME B16.5 Class 150, ASME B16.5 Class 300 and JIS 10K; the rating stated for each unit is the one stamped into its own flange. Tell us your line rating and we will match the right unit.
All seven units in stock carry a medium temperature range of -50 to +200 °C on their own nameplates, with a permitted ambient of -20 to +60 °C. Two of them have Alloy C-22 (2.4602 / N06022) flanges; that is a corrosion-resistance material option and does not give the meter a higher temperature rating.
The 80 transmitter provides a 4-20 mA current output with HART digital communication plus a pulse/frequency output, as marked on the nameplate (I-OUT (HART), F-OUT). This integrates directly into PLC/DCS and totalizing systems.

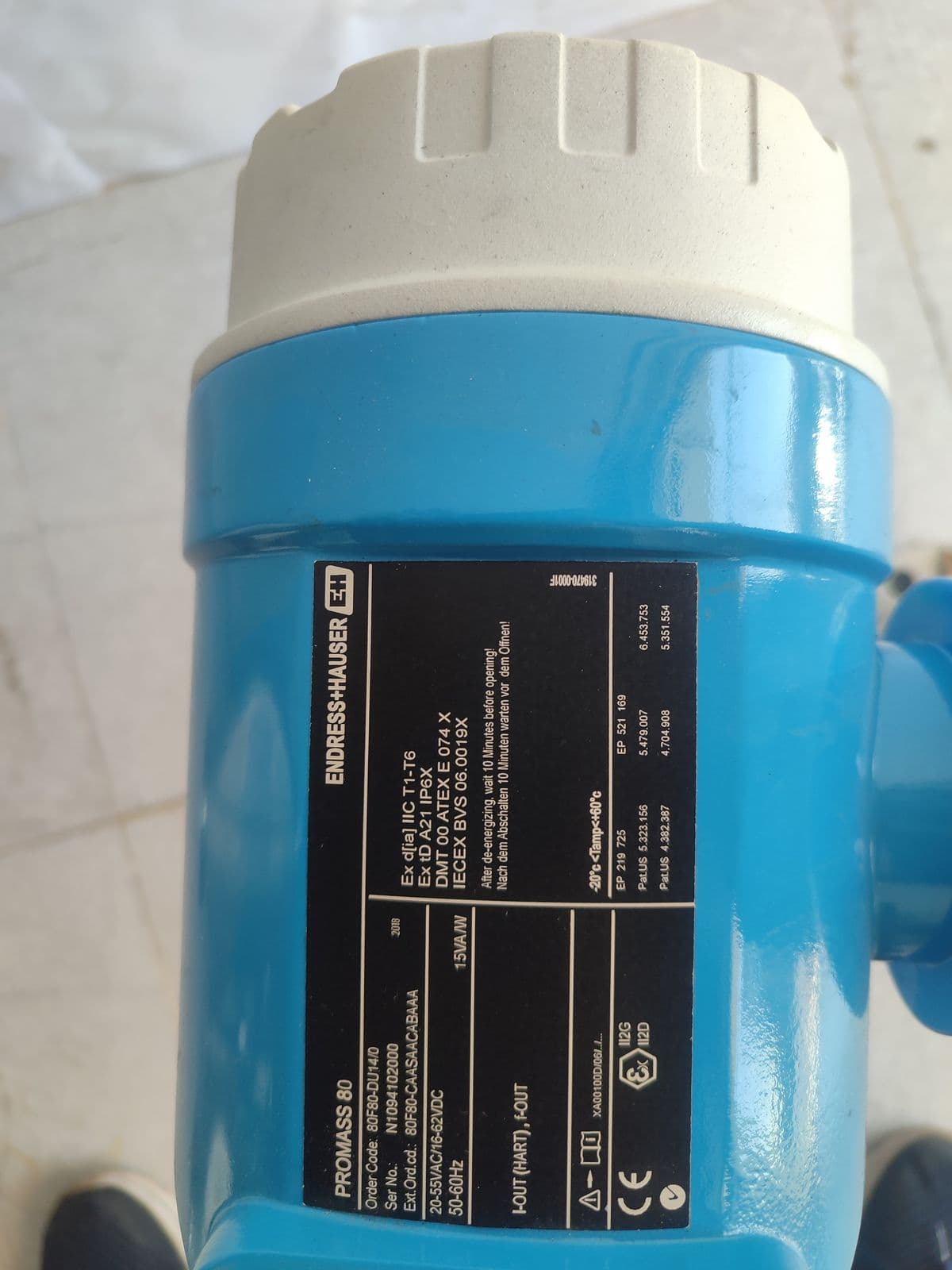

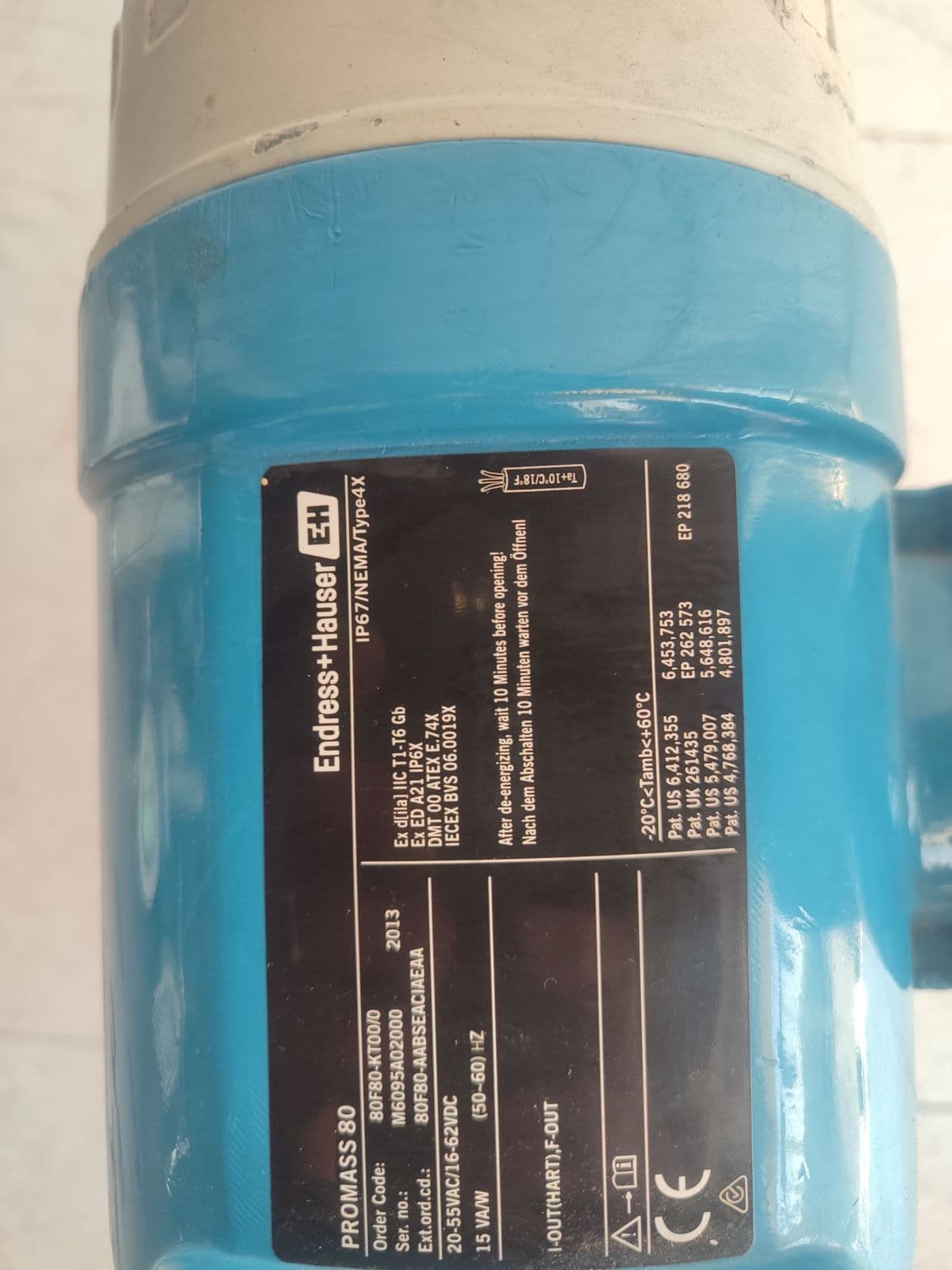

Yes. The nameplates show ATEX II 2G / II 2D and IECEx approval (certificates ATEX BVS 06.0019X and DMT 00 ATEX E 074 X), with IP67 / NEMA 4X protection, making it suitable for hazardous-area process installations.
Yes. Each unit is a genuine Endress+Hauser device physically in Barmaan's stock, identified from its own nameplate. You can request a proforma invoice directly from this product page, and a pre-purchase on-site inspection can be arranged. Ask us for the serial and order code of a specific unit.
