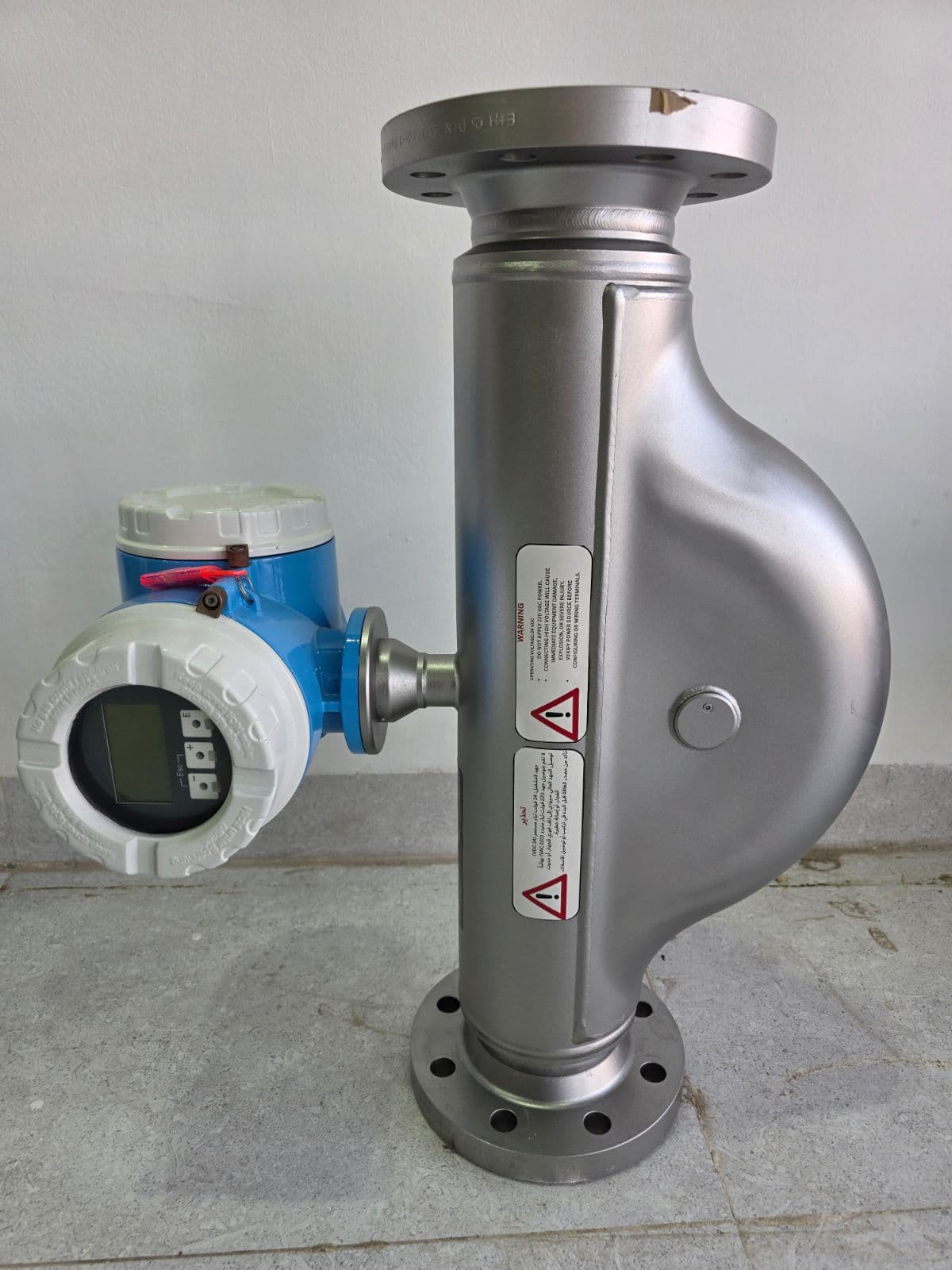

1 / 10Promass 83E Coriolis mass flowmeter, DN80, PN40, manufactured 2018 — new in Barmaan stock. 4–20 mA HART output, ATEX/IECEx, ±0.15% accuracy. The photos show the actual unit in our warehouse.
The Endress+Hauser Proline Promass 83E in DN80 (3") belongs to the Promass E family — Endress+Hauser's compact, cost-optimised line for standard process-industry duties. The unit offered here was manufactured in 2018, is entirely new, and is held physically in Barmaan's warehouse; every "Barmaan stock" photograph in the gallery on this page is of this specific device, and its transmitter and sensor nameplates, carrying order code 83E80-6H80/0, are legible in those images. Two new physical units of this model are currently in Barmaan's warehouse (both 2018 builds).
Coriolis measurement is independent of the physical properties of the fluid. Two parallel measuring tubes are driven at their resonant frequency; as the medium flows through them a phase shift proportional to mass flow develops, while the resonant frequency itself is a direct function of medium density. The result is simultaneous multivariable measurement — mass flow, volume flow, density and temperature — at a single point in the line, with no straight upstream or downstream runs required.
The Promass E sensor is designed for the lowest cost of ownership and is an ideal replacement for volumetric flowmeters: measuring tubes in 1.4539 (904L) stainless steel with 1.4404 (316L) connections, a base accuracy of ±0.15% of reading on liquids (±0.10% with the calibration option), ±0.075% repeatability, 18 kg/h zero point stability at DN80, and a flow range up to 180,000 kg/h. The sensor housing is filled with dry nitrogen and carries a 15 bar reference pressure rating. Medium temperature runs from −40 to +140 °C, medium density up to 5000 kg/m³, and the flanges are DIN/EN 1092-1 in PN40. The E family is offered from DN8 to DN80, of which DN80 is the largest.

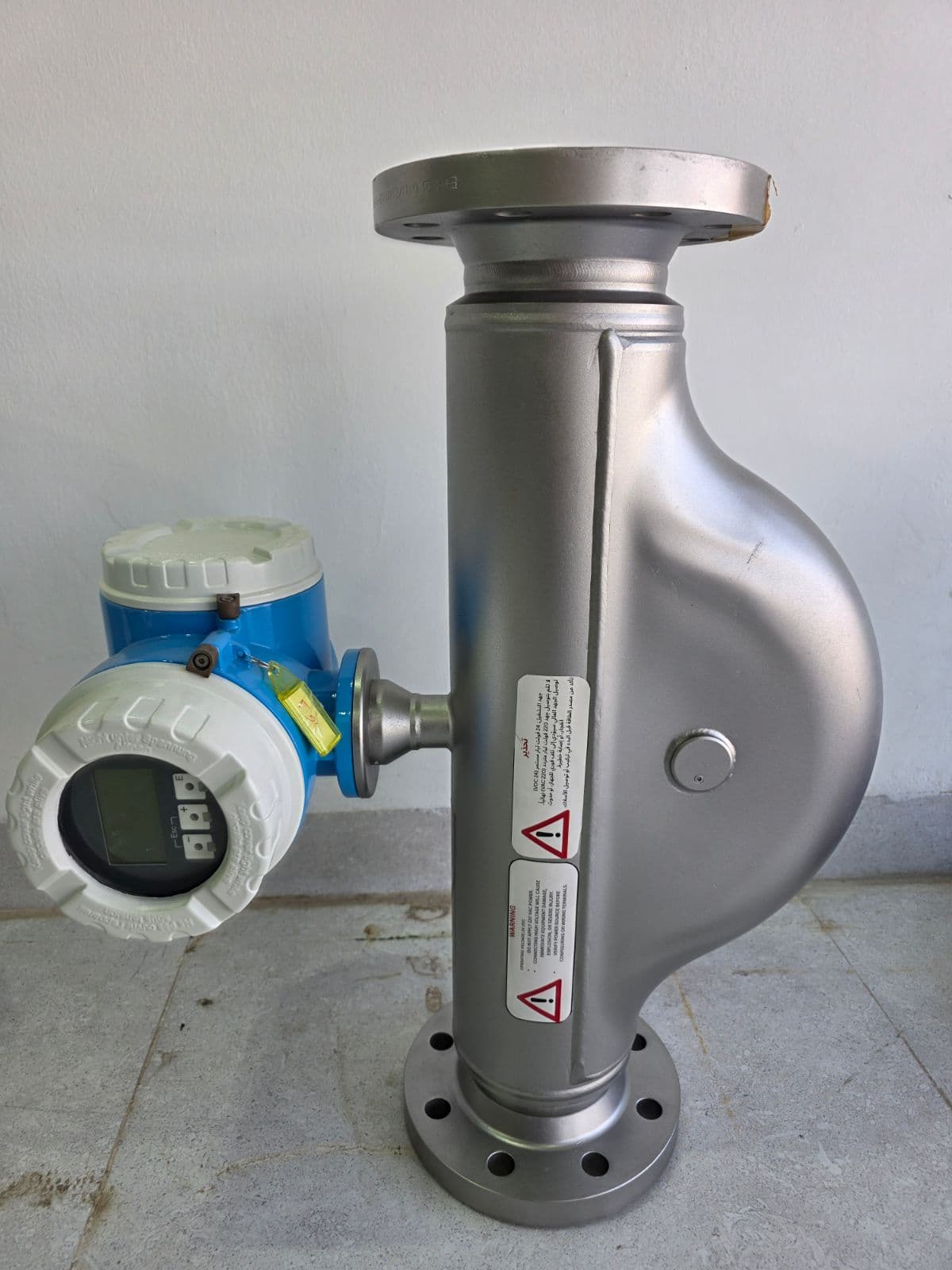

The Proline 83 transmitter, with its four-line backlit display and optical Touch Control keys, allows the instrument to be operated in full without opening the housing cover — even in a hazardous area. Quick Setup menus cut commissioning to a few minutes, and the 83 version additionally provides calculated variables such as fluid concentration. Supply on this unit is the low-voltage variant: 20 to 55 V AC or 16 to 62 V DC (under 15 VA/W), with a 4–20 mA HART output plus pulse/frequency.
This device carries ATEX and IECEx approval with protection class Ex d[ia] IIC T1-T6 (gas, II2G) and Ex tD A21 IP6X (dust, II2D) for installation in hazardous areas, IP67 (NEMA 4X) ingress protection, and SIL 2 functional safety per IEC 61508 — a combination that makes it a dependable and cost-effective choice for the oil, gas, petrochemical, chemical and food industries.
Barmaan supplies industrial instrumentation; this item is offered with a guarantee of authenticity, the option to inspect it in person at the warehouse, free sizing consultation, and installation and commissioning support. To obtain pricing, submit a proforma invoice request from this page.
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Endress+Hauser (Germany) |
| Model / Order code | Proline Promass 83E — 83E80-6H80/0 |
| Device type | Coriolis Mass Flowmeter |
| Year of manufacture | 2018 |
| Performance & accuracy | |
| Max. flow (DN80) | 180,000 kg/h |
| Mass flow accuracy (liquids) | ±0.15% o.r. — ±0.10% o.r. (calibration option) |
| Volume flow accuracy (liquids) | ±0.15% o.r. |
| Repeatability | ±0.075% o.r. (±0.05% with 0.1% calibration option) |
| Mass flow accuracy (gases) | ±0.75% o.r. |
| Density accuracy (liquids) | ±0.0005…±0.02 g/cm³ (calibration-dependent) |
| Temperature accuracy | ±0.5 °C ± 0.005 × T |
| Zero point stability (DN80) | 18.0 kg/h |
| Process conditions & connection | |
| Nominal diameter | DN 80 (3") |
| Flange rating | DIN/EN 1092-1 PN 40 (PS = 40 bar) |
| Medium temperature | −40…+140 °C (−40…+284 °F) |
| Medium density range | 0…5000 kg/m³ |
| Ambient temperature | −20…+60 °C |
| Construction & materials | |
| Ingress protection | IP67 (NEMA 4X) |
| Sensor housing | Dry-nitrogen filled — 15 bar pressure loading reference |
| Measuring tube material | 1.4539 (904L) / 1.4404 (316L) |
| Flange / connection material | Stainless Steel 1.4404 (F316/F316L) |
| Power & output | |
| Power supply (this unit) | 20…55 VAC / 16…62 VDC, 50–60 Hz — <15 VA/W |
| Output / Communication | 4–20 mA HART + Pulse/Frequency (I-OUT, f-OUT) |
| Display | 4-line backlit LCD, Touch Control (optical keys) |
| Approvals & safety | |
| Ex approval | ATEX / IECEx — Ex d[ia] IIC T1-T6, Ex tD A21 IP6X (DMT 00 ATEX E 074 X, IECEx BVS 06.0019X) |
| Functional safety | SIL 2 (IEC 61508 / IEC 61511-1) |
| Condition & availability | |
| Condition | New / نو — Barmaan stock |
| Model code | Description | Measuring range |
|---|---|---|
| DN 8 (⅜") | Promass 83E — DN 8Smallest size of the 83E family | up to 2,000 kg/h |
| DN 15 (½") | Promass 83E — DN 15Small size for low flow rates | up to 6,500 kg/h |
| DN 25 (1") | Promass 83E — DN 25The most common size in utilities and chemicals | up to 18,000 kg/h |
| DN 40 (1½") | Promass 83E — DN 40Mid-range size | up to 45,000 kg/h |
| DN 50 (2") | Promass 83E — DN 50Popular mid-range size | up to 70,000 kg/h |
| DN 80 (3") | Promass 83E — DN 80 ★ this unitLargest size of the E family — in Barmaan stock, mfg. 2018, PN40 | up to 180,000 kg/h |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.

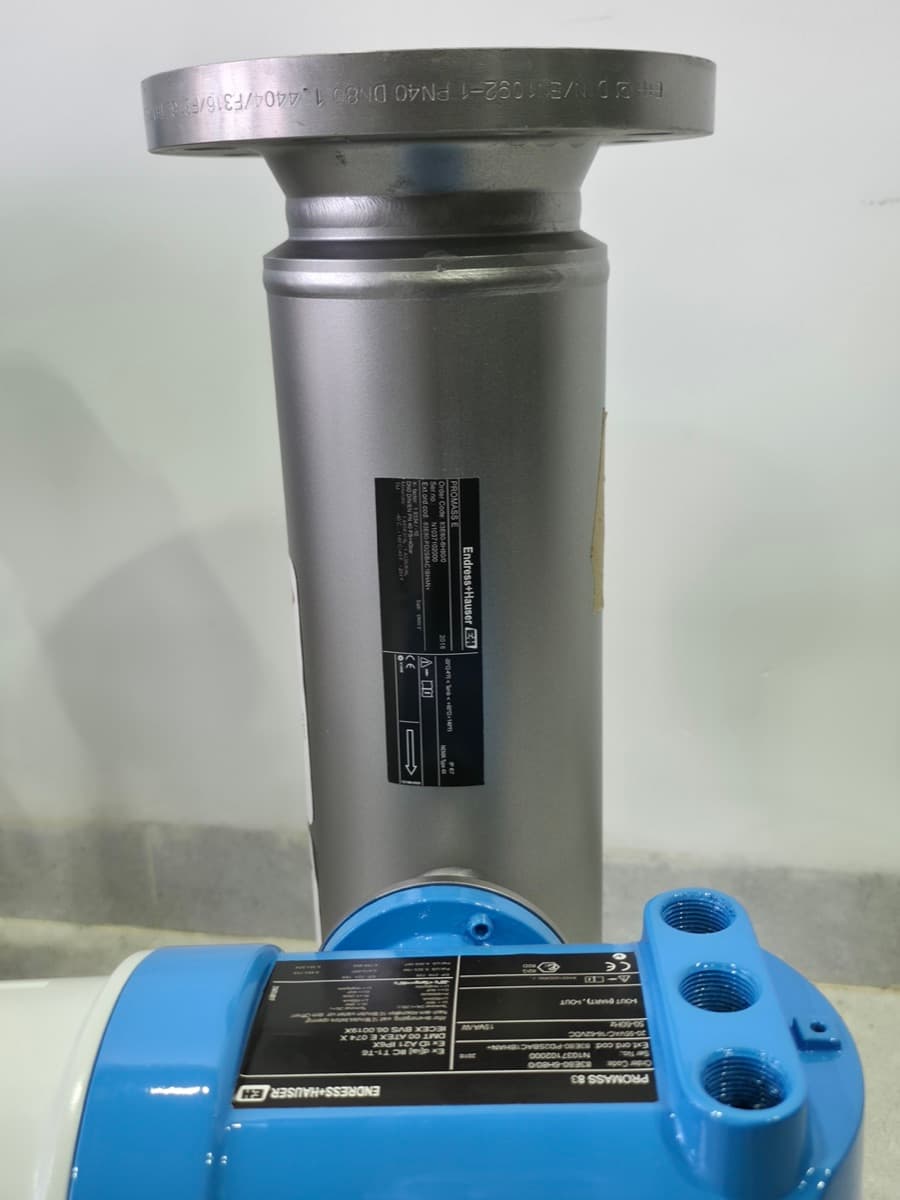

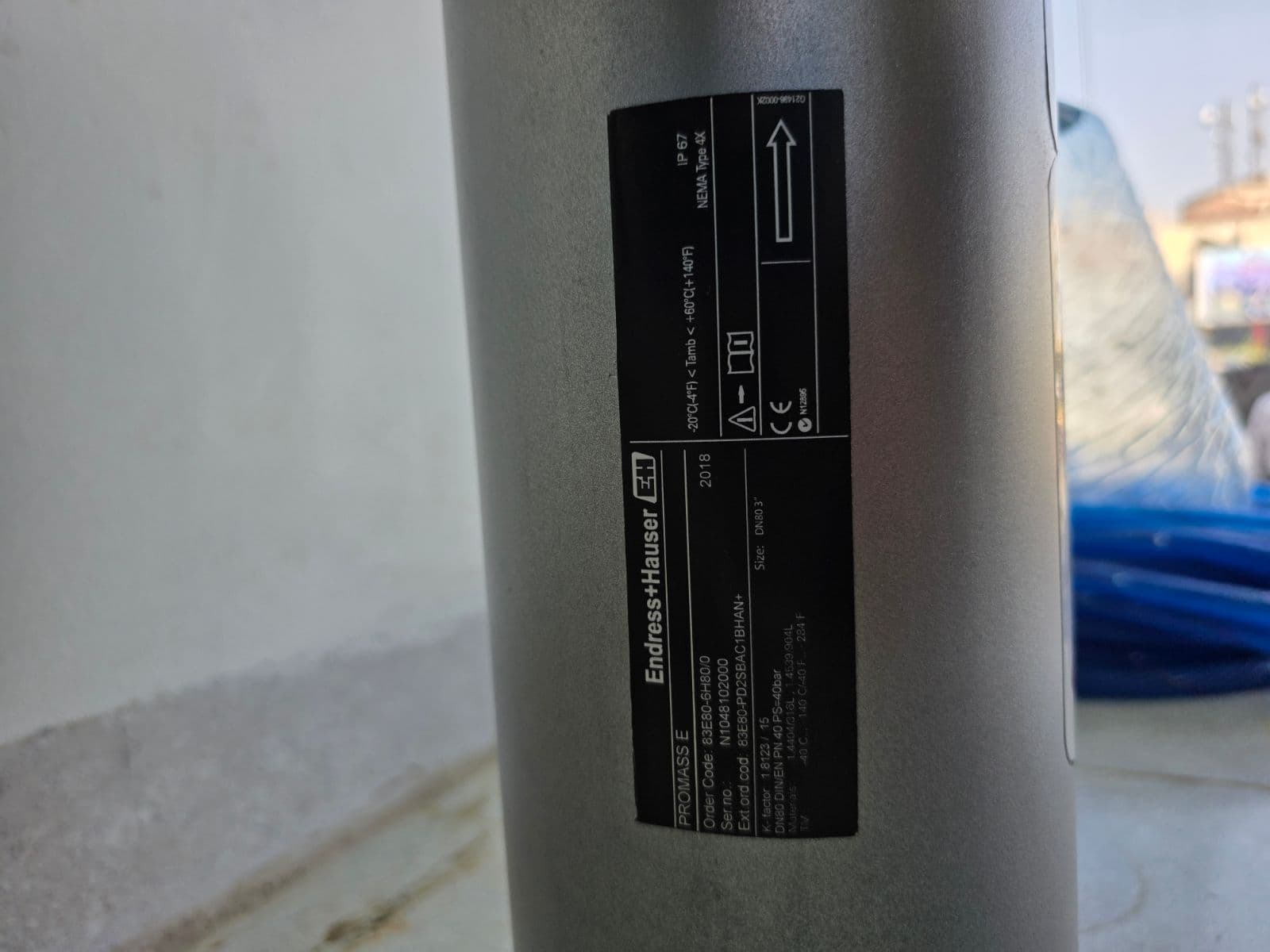

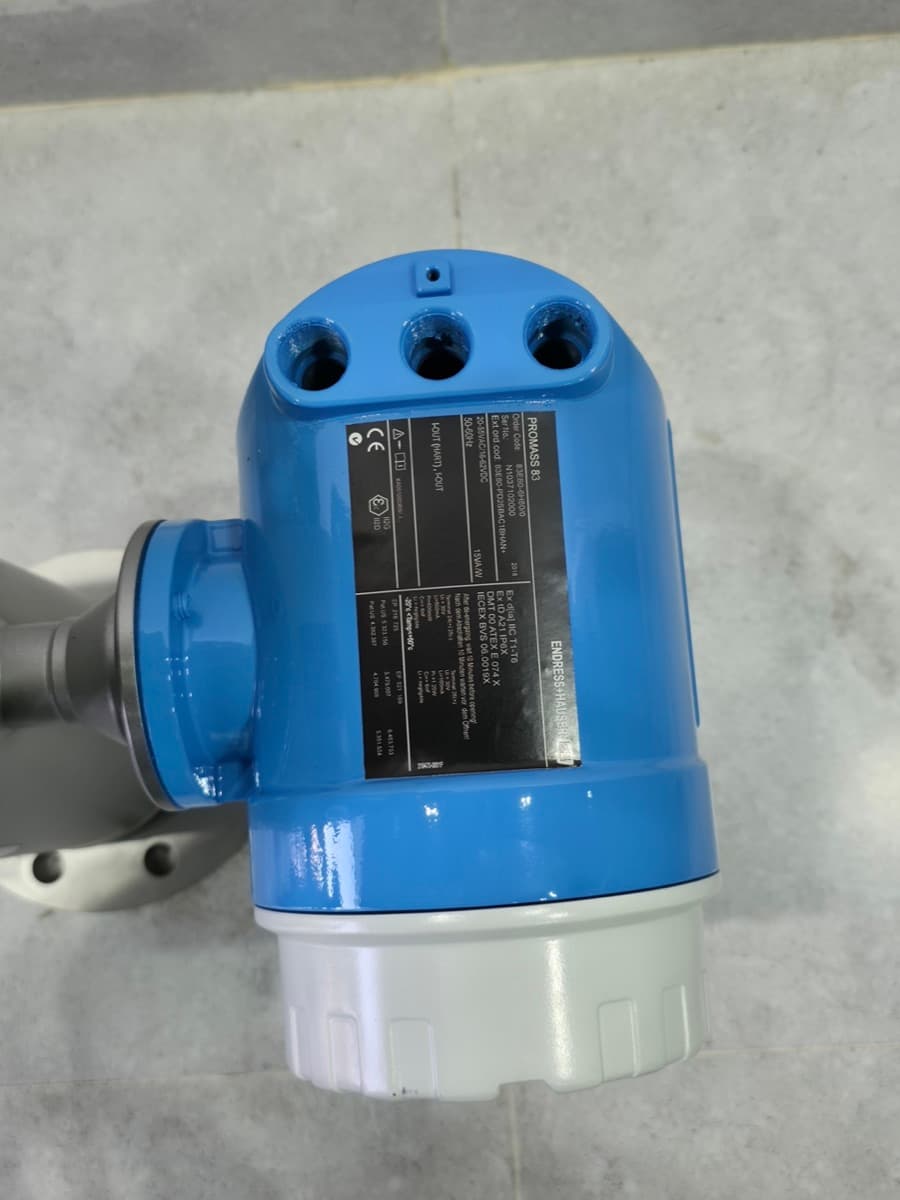

The unit is entirely new (new / unused), manufactured by Endress+Hauser in 2018, and is currently held physically in Barmaan's warehouse. The photographs on this page — including the transmitter nameplate and the sensor nameplate showing order code 83E80-6H80/0 — were all taken of this very device in the Barmaan warehouse.
Both are twin-tube Coriolis flowmeters using the same Proline 83 transmitter; the difference is in the sensor. Promass E is Endress+Hauser's compact, cost-optimised line for standard duties: ±0.15% of reading accuracy, medium temperature to +140 °C, and sizes DN8 to DN80. Promass F is the higher-tier sensor: ±0.10% accuracy, medium temperature to +200 °C, a rugged secondary containment and larger sizes. If your application is a standard one, the 83E delivers the same Coriolis measurement quality at a lower cost. Both models (83E and 83F in DN80) are currently in Barmaan's warehouse.
Per its nameplate this unit has a 4–20 mA current output with the HART protocol plus a pulse/frequency output, and is compatible with all common DCS/PLC systems (Siemens, ABB, Yokogawa, Emerson and others). One important note: the supply on this unit is the low-voltage variant (20 to 55 V AC or 16 to 62 V DC) — check the supply at your installation against that specification before mounting. Other versions of the Promass 83 family also support PROFIBUS PA/DP, FOUNDATION Fieldbus and Modbus RS485.
Yes. The Promass 83E Coriolis flowmeter is designed for both liquids and gases; per the official datasheet, mass flow accuracy on gas is ±0.75% of reading, and the gas full scale depends on the operating density (per the formula in the datasheet). Barmaan's engineers perform the sizing calculations free of charge.
Yes. Per the device nameplate it carries ATEX and IECEx approval with class Ex d[ia] IIC T1-T6 for gas (group II2G) and Ex tD A21 IP6X for dust (group II2D) — certificates DMT 00 ATEX E 074 X and IECEx BVS 06.0019X — and is suitable for installation in Zone 1/21. The Ex documentation is delivered with the item.
You can submit a proforma invoice request from this page; Barmaan's engineers will confirm the price and delivery terms within one working day at most. The item is in stock, so once the order is confirmed it is ready for collection or shipment with no overseas procurement lead time. Authenticity is guaranteed, and you are welcome to inspect the device in person at the warehouse.
