1 / 8Promass F 300 Coriolis mass flowmeter (new Proline generation), DN100, PN16, manufactured 2022 — new in Barmaan stock, with ±0.0005 g/cm³ special density calibration and ±0.10% accuracy. The photos show the actual unit in our warehouse.

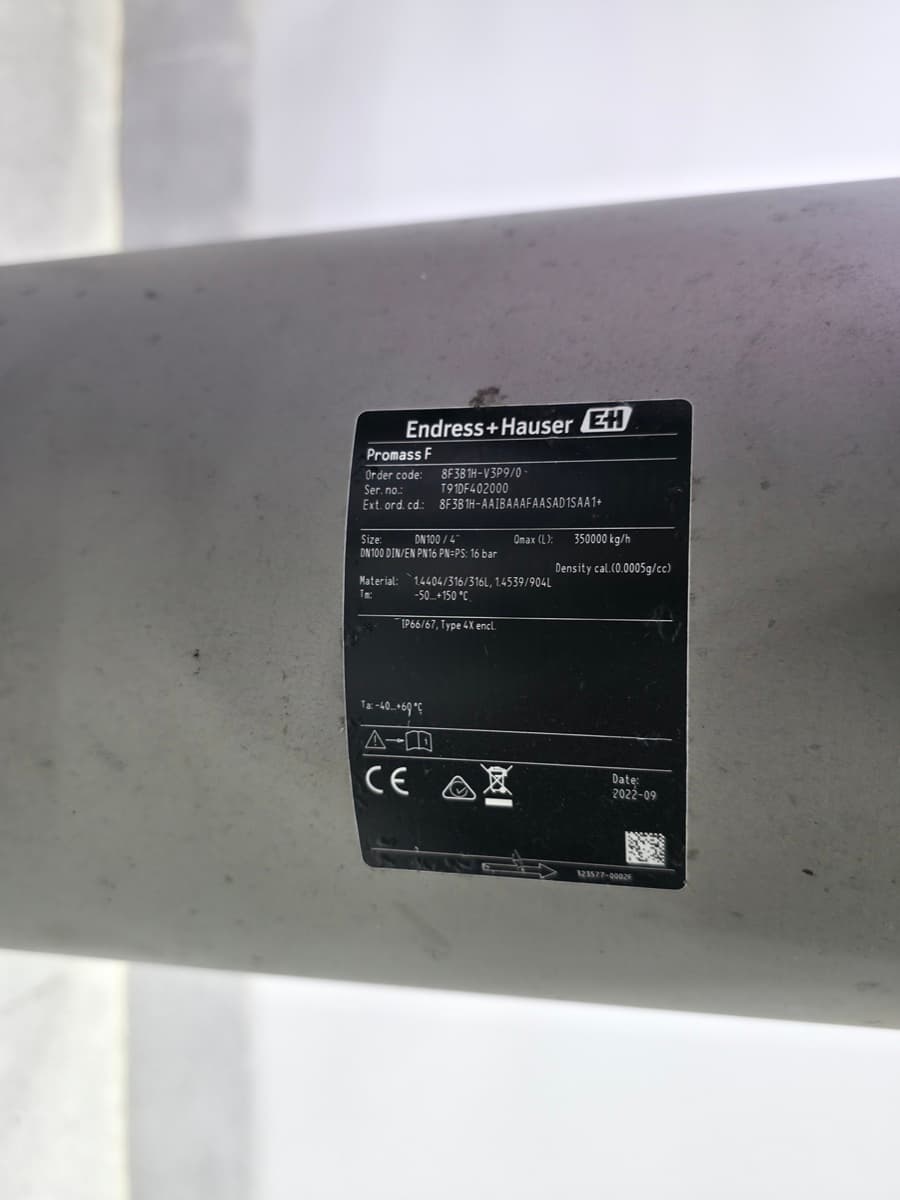

The Endress+Hauser Proline Promass F 300 in DN100 (4") pairs the proven Promass F sensor with the latest generation of Endress+Hauser transmitters — the compact Proline 300 platform. The unit offered here was manufactured in September 2022, is entirely new and unused, and is held physically in Barmaan's warehouse. Every "Barmaan stock" photograph in the gallery on this page is of this specific device; its sensor nameplate, carrying order code 8F3B1H-V3P9/0, is legible in those images, and a laboratory calibration sticker dated November 2022 is visible on the housing.
Coriolis measurement is independent of the physical properties of the fluid. Two parallel measuring tubes are driven at their resonant frequency; as the medium passes through them a phase shift proportional to mass flow develops along the tubes, while the resonant frequency itself is a direct function of medium density. The result is simultaneous multivariable measurement — mass flow, volume flow, density and temperature — at a single point in the line, with no straight upstream or downstream runs required for flow conditioning.
The Promass F sensor is the heart of the instrument: measuring tubes in 1.4539 (904L) stainless steel with 1.4404/316/316L process connections, a base accuracy of ±0.10% of reading on liquids (±0.05% with the PremiumCal option), ±0.05% repeatability, 14 kg/h zero point stability at DN100, and a flow range up to 350,000 kg/h. Per its nameplate this particular unit was supplied with a special density calibration of ±0.0005 g/cm³, which makes it a strong candidate for accurate inline density and concentration measurement. The sensor housing is filled with dry nitrogen and, at DN100, is rated 16 bar nominal with an 85 bar burst pressure. Medium temperature runs from −50 to +150 °C, medium density up to 5000 kg/m³, and the flanges are DIN/EN PN16.
The Proline 300 transmitter is Endress+Hauser's new-generation platform: a compact build, a four-line backlit display with touch keys, freely configurable I/O modules (up to three — HART, pulse/frequency, PROFIBUS, Modbus and others), HistoROM memory that retains the configuration, and support for Heartbeat Technology for periodic verification of the flowmeter without interrupting the process (optional package). Supply is dual-rated: 85 to 264 V AC or 19.2 to 28.8 V DC, drawing a maximum of 10 W.
This unit is the General Purpose version — no Ex marking on the nameplate — with IP66/67 ingress protection (Type 4X enclosure), suitable for installation in non-hazardous areas of oil, gas, petrochemical, chemical and food plants. The Promass F 300 family additionally offers functional safety capability up to SIL 2/3 per IEC 61508 as an ordering option.
Barmaan supplies industrial instrumentation; this item is offered with a guarantee of authenticity, the option to inspect it in person at the warehouse, free sizing consultation, and installation and commissioning support. To obtain pricing, submit a proforma invoice request from this page.
| Attribute | Value |
|---|---|
| General | |
| Manufacturer | Endress+Hauser |
| Model / Order code | Proline Promass F 300 — 8F3B1H-V3P9/0 |
| Device type | Coriolis Mass Flowmeter |
| Transmitter | Proline 300 (compact) — 4-line backlit LCD, touch control |
| Year of manufacture | 2022-09 |
| Performance & accuracy | |
| Max. flow (DN100) | 350,000 kg/h |
| Mass flow accuracy (liquids) | ±0.10% o.r. — ±0.05% o.r. (PremiumCal option) |
| Volume flow accuracy (liquids) | ±0.10% o.r. |
| Repeatability | ±0.05% o.r. (±0.025% with PremiumCal option) |
| Mass flow accuracy (gases) | ±0.35% o.r. |
| Density accuracy (this unit) | ±0.0005 g/cm³ — special density calibration (per nameplate) |
| Temperature accuracy | ±0.5 °C ± 0.005 × T |
| Zero point stability (DN100) | 14.0 kg/h |
| Process conditions & connection | |
| Nominal diameter | DN 100 (4") |
| Flange rating | DIN/EN PN 16 (PN = PS = 16 bar) |
| Medium temperature | −50…+150 °C (−58…+302 °F) |
| Medium density range | 0…5000 kg/m³ |
| Ambient temperature | −40…+60 °C |
| Construction & materials | |
| Ingress protection | IP66/67, Type 4X enclosure |
| Sensor housing (DN100) | Dry-nitrogen filled — 16 bar nominal / 85 bar burst pressure |
| Measuring tube material | 1.4539 (904L) / 1.4404 (316L) |
| Process connection material | 1.4404 / 316 / 316L |
| Power & output | |
| Power supply | AC 85…264 V, 50/60 Hz / DC 19.2…28.8 V — max 10 W |
| Output / Communication | Modular I/O, up to 3 modules (4–20 mA HART / Pulse-Freq. / PROFIBUS / Modbus … per order code) |
| Approvals & safety | |
| Functional safety (family) | SIL 2 (single-channel) / SIL 3 (multichannel) per IEC 61508 — order option |
| Condition & availability | |
| Condition | New / نو — Barmaan stock |
| Model code | Description | Measuring range |
|---|---|---|
| DN 8 (⅜") | Promass F 300 — DN 8Smallest size of the F family | up to 2,000 kg/h |
| DN 15 (½") | Promass F 300 — DN 15Small size for low flow rates | up to 6,500 kg/h |
| DN 25 (1") | Promass F 300 — DN 25The most common size in utilities and chemicals | up to 18,000 kg/h |
| DN 40 (1½") | Promass F 300 — DN 40Mid-range size | up to 45,000 kg/h |
| DN 50 (2") | Promass F 300 — DN 50Popular mid-range size | up to 70,000 kg/h |
| DN 80 (3") | Promass F 300 — DN 80Mid-size transfer lines | up to 180,000 kg/h |
| DN 100 (4") | Promass F 300 — DN 100 ★ this unitThe size in Barmaan stock — mfg. 2022, PN16 | up to 350,000 kg/h |
| DN 150 (6") | Promass F 300 — DN 150High-capacity lines | up to 800,000 kg/h |
| DN 250 (10") | Promass F 300 — DN 250Largest size of the F family | up to 2,200,000 kg/h |
All listed models can be supplied with your required certification, output protocol and process connection — contact us or request a quote for exact model-code selection.

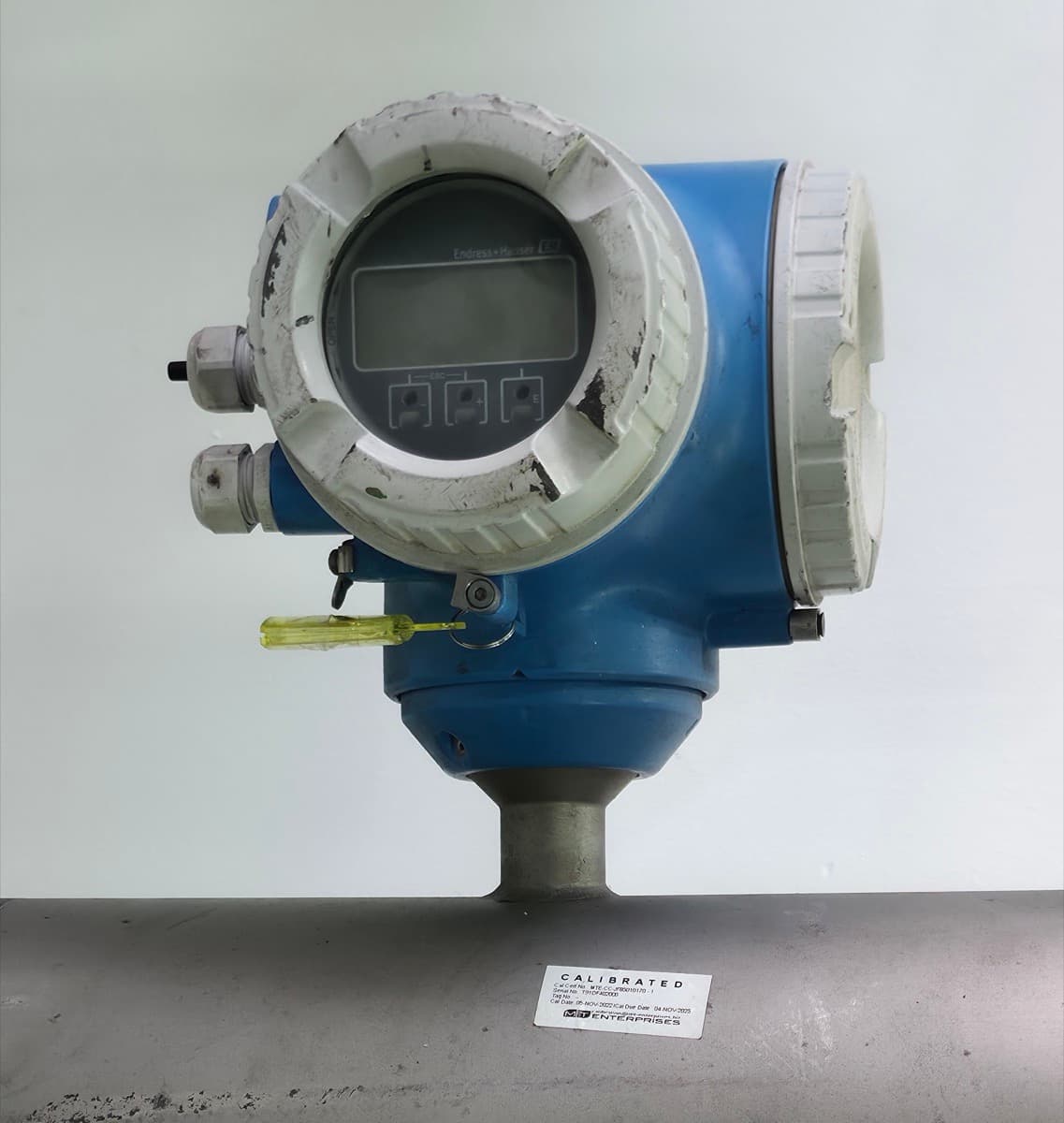

It is completely new and unused, manufactured by Endress+Hauser in September 2022 (2022-09), and is physically in stock in Barmaan's warehouse right now. Every photograph on this page — including the sensor nameplate showing order code 8F3B1H-V3P9/0 — was taken of this exact unit in our warehouse. A laboratory calibration sticker (MTE, November 2022) is also visible on the housing.
The sensor is the same proven Promass F in both generations; the difference lies in the transmitter. The F 300 runs on the newer Proline 300 platform with freely configurable I/O modules, Heartbeat Technology support (verification without interrupting the process) and HistoROM memory, whereas the 83 generation uses the older Proline platform. If your project calls for the latest generation, this F 300 is the right choice; for a like-for-like replacement on older sites, Promass 83F and 83E flowmeters in DN80 are also currently in Barmaan stock.
The Proline 300 transmitter has modular outputs (up to three I/O modules: 4–20 mA HART, pulse/frequency, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485 and others) and works with all the common DCS/PLC systems (Siemens, ABB, Yokogawa, Emerson and so on). The exact I/O configuration of this unit is encoded in its extended order code (8F3B1H-AAIBAAAFAASAD1SAA1+) — Barmaan's engineers decode it and confirm the precise configuration for you before purchase. The device supports both AC supply (85 to 264 V) and DC supply (19.2 to 28.8 V).
Yes. The Promass F 300 Coriolis flowmeter is designed for both liquids and gases; per the official datasheet, mass flow accuracy on gases is ±0.35% of reading, and the gas full-scale value depends on the density and the speed of sound of the gas at operating conditions (following the datasheet formula). Barmaan's engineers run the sizing calculation for you free of charge.
This particular unit is the General Purpose version: the sensor nameplate carries no Ex marking (ATEX/IECEx), only the CE mark — so it is suitable for installation in safe (non-hazardous) areas and must not be used in hazardous areas. The Promass F 300 family does also come in Ex versions; if your project is Zone-rated, Barmaan's engineers will advise on sourcing the correct version.
You can submit a proforma invoice request directly from this page; Barmaan's engineers come back with pricing and delivery terms within one working day at most. The unit is in stock, so once the order is confirmed it is ready for collection or dispatch with no overseas procurement lead time. Authenticity is guaranteed, and you are welcome to inspect the device in person at the warehouse.
